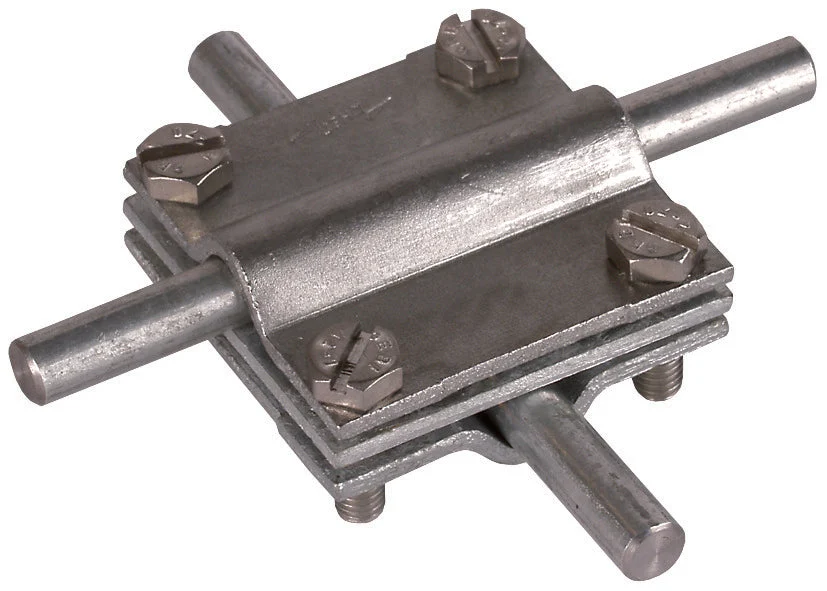

This is a cross unit for lightning protection, complying with EN 62561-1 standards, designed for the aboveground connection of both round and flat conductors in a cross and T arrangement. It features an intermediate plate and comes with M6 screws for assembly. The connector can accommodate round conductors of diameters between 8-10mm and flat conductors of up to 30mm in diameter. It has a thermal galvanized surface for enhanced durability, and it is made from sturdy steel, ensuring reliable protection against lightning.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
