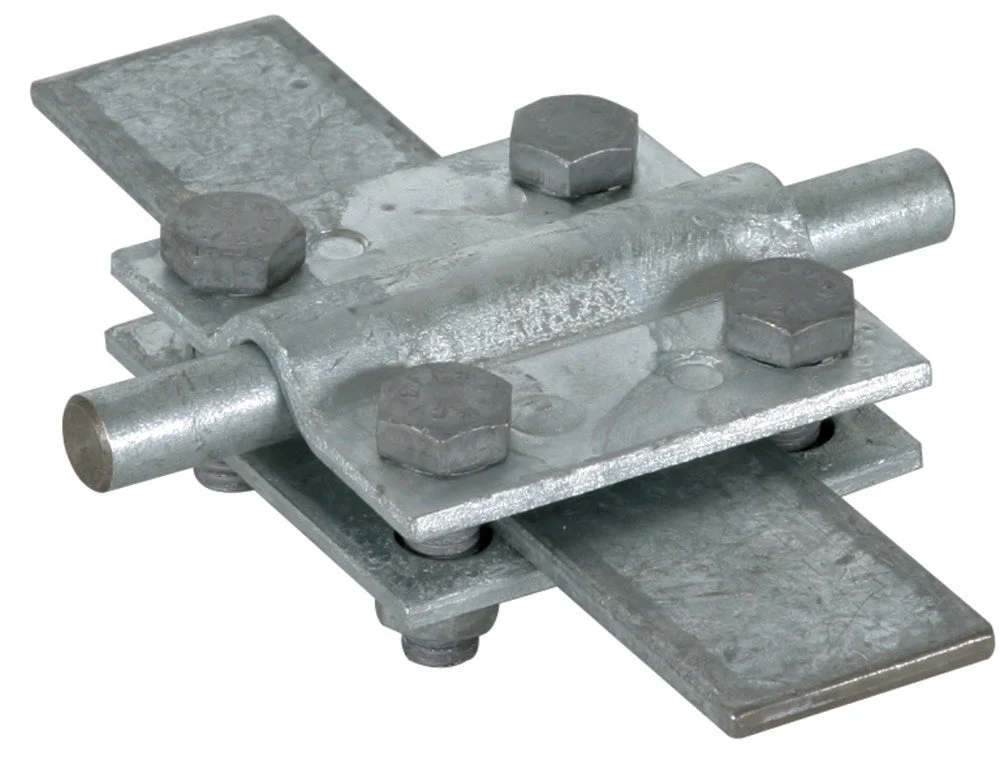

Dehn Cross Unit ST TZN For RD 8-10 FL 30mm Without Intermediate – 318201

This is a cross unit for lightning protection, constructed from steel and conforming to EN 62561-1 standards. It is designed for both aboveground and underground connections of round and flat conductors. The cross unit has no intermediate plate and is equipped with M8 screws for fastening. It can accommodate a round conductor of diameter ranging from 8 to 10mm, and two flat conductors each of a diameter of 30mm. The unit is protected with a thermally galvanized surface for added durability.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
