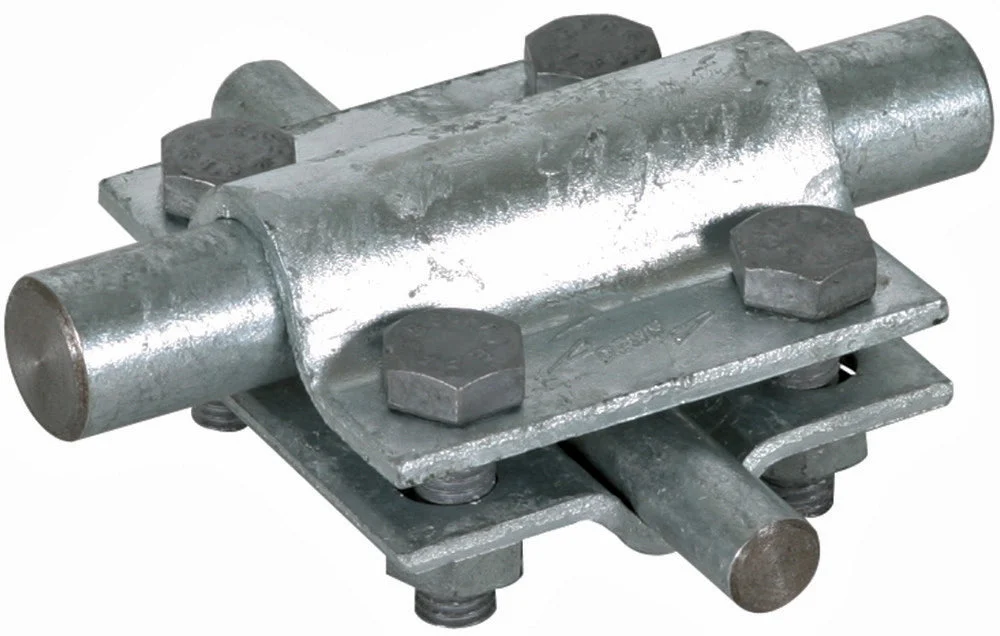

This is a Dehn connector for lightning protection, made of steel. The connector type is a cross unit compliant with EN 62561-1, suitable for aboveground and underground connection of round and flat conductors to air-termination or earth entry rods. It has a cross coupling connection type and does not come with an intermediate plate. The diameters for the round conductors are 1 8 – 10mm and 16mm respectively and for the flat conductor, it is 30mm. The connector has a thermally galvanized surface for protection and uses hexagonal screws for fastening, specifically of type M8.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Diameter round conductor 2 (mm) : 16 mm to 16 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
