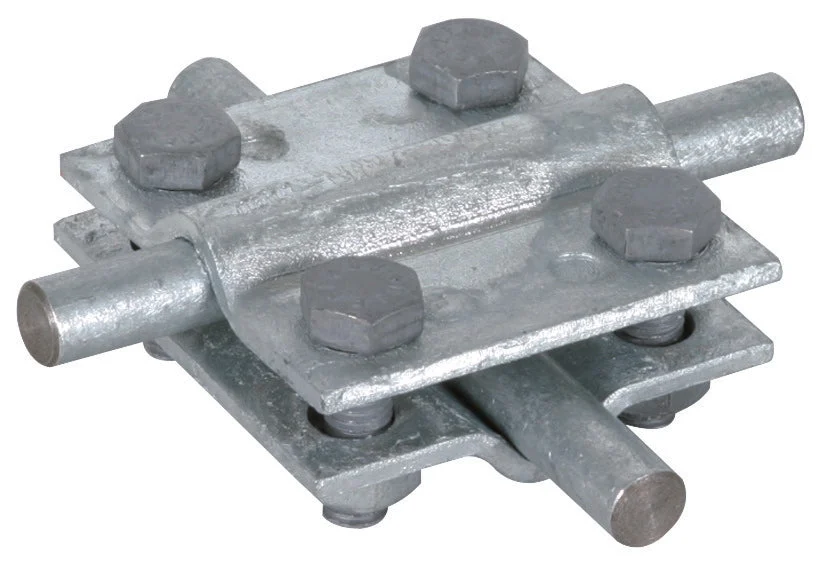

The item is a cross unit for lightning protection, made from steel and designed in accordance with EN 62561-1. It is used for both aboveground and underground connection of round and flat conductors. The cross unit has a connection type of cross-coupling with a diameter for the round conductor of between 8mm and 10mm, and 30mm for the flat conductor. A similar measurement applies to the second set of conductors. For surface protection, the unit features thermo-galvanized shielding and comes with M8 screws. It does not include an intermediate plate.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
