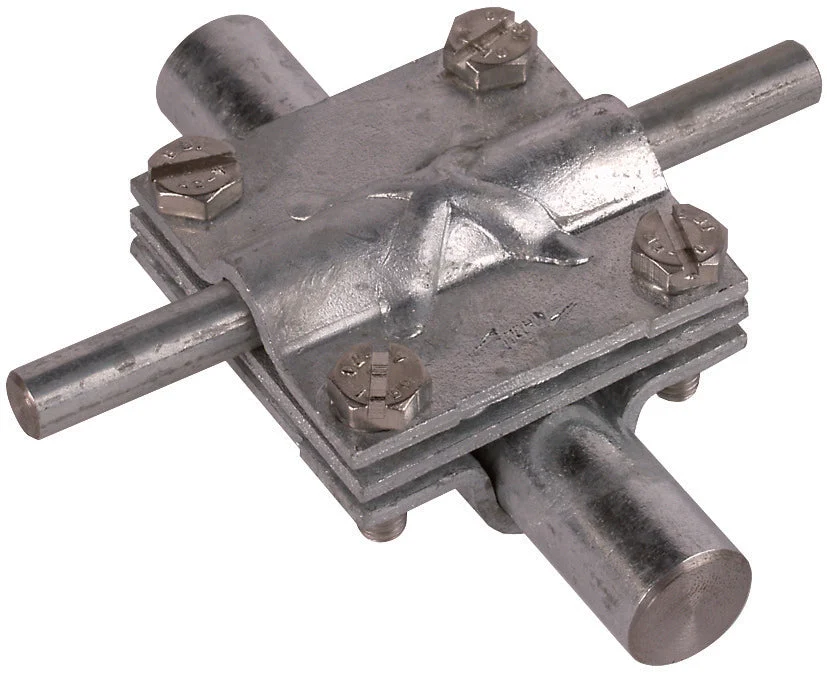

This is a Dehn connector for lightning protection, made of steel and featuring a cross-connection type suitable for both round and flat conductors. The connector accommodates a round conductor of a diameter of 16mm, a flat conductor of a diameter of 30mm, and a second round conductor with a diameter between 8 and 10mm. The connector has been thermally galvanized for surface protection and comes with hexagonal M6 screw type for attachment. This unit is compliant with EN 62561-1 and is designed for the aboveground connection of conductors to air-termination rods, complete with an intermediate plate.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 16 mm to 16 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Material : Steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
