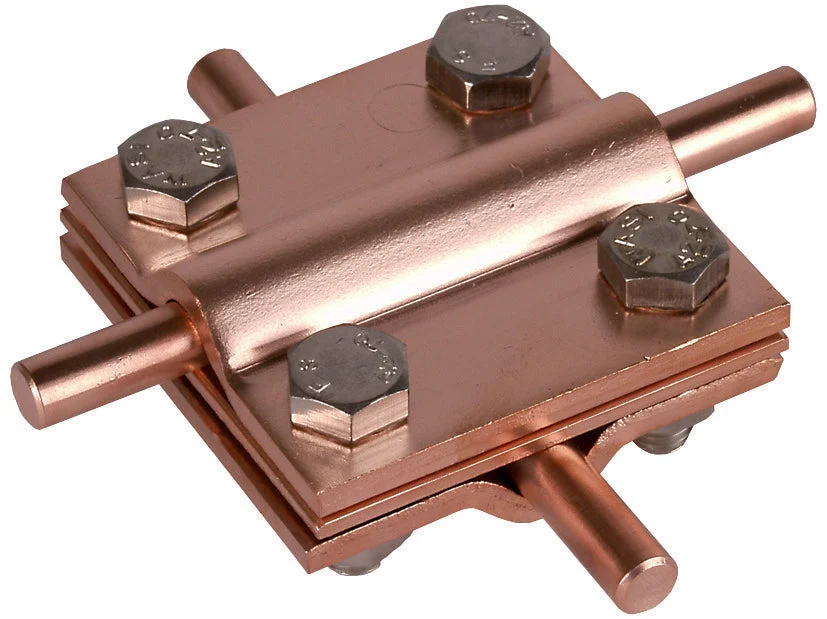

The item is a Dehn connector used for lightning protection. It is made of copper and is a type of cross unit in accordance with EN 62561-1. The connector is suitable for both aboveground and underground connection of round and flat conductors, and it features an intermediate plate and comes with M8 screws. The diameters for the round conductors are 1 8–10mm and 2 8–10mm, whereas the flat conductors have diameters of 1 30mm and 2 30mm. The connector does not have any surface protection, thus it remains untreated.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
