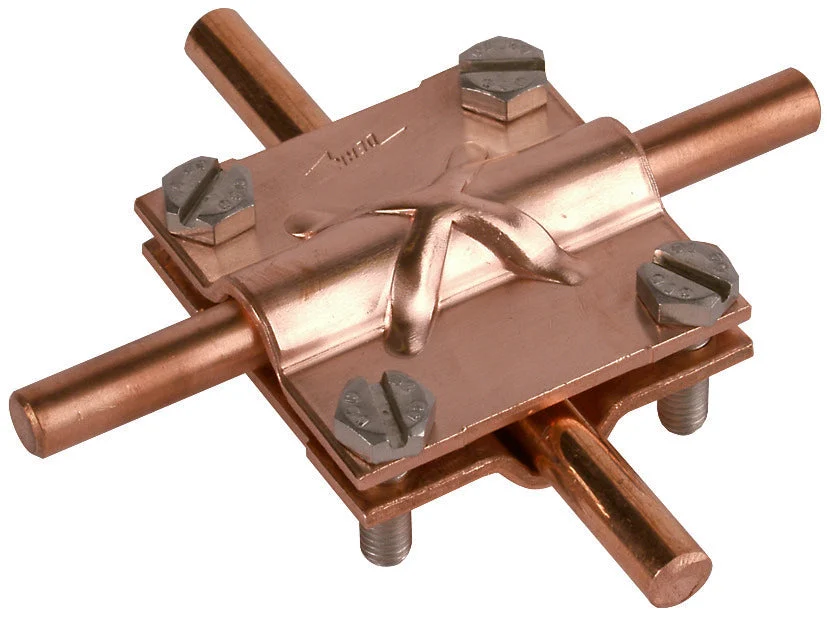

This is a Dehn connector for lightning protection, made of copper. It is used for an aboveground connection of round and flat conductors in cross and T arrangement, as per EN 62561-1. The connector accommodates a round conductor with the diameter of 8 – 10mm and a flat conductor with the diameter of 30mm. Another set of similar inputs can also be connected using this cross unit. It does not come with an intermediate plate but includes M6 screws. The surface of the unit is untreated.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Diameter round conductor 2 (mm) : 8 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
