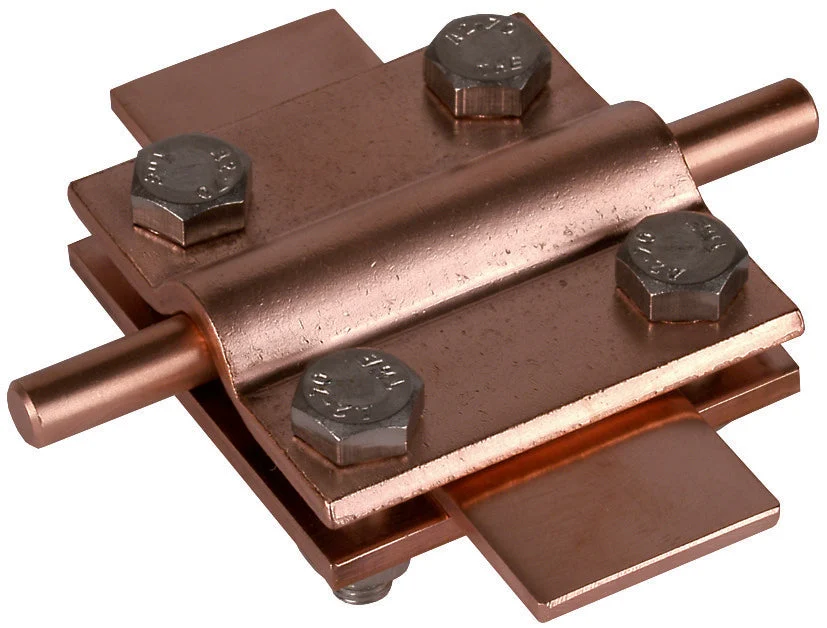

Dehn Cross Unit CU For RD 8-10 FL 30mm Without Intermediate Plate – 318207

This is a Dehn connector suitable for lightning protection, made of copper. It employs cross coupling as the connection type and does not come with any surface protection(untreated). It is designed for both aboveground and underground connection of round conductors with a diameter range of 8 – 10mm, and flat conductors with a diameter of 30mm. The connector is without an intermediate plate and uses hexagonal M8 screws for attachment. It complies with EN 62561-1 standards.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
