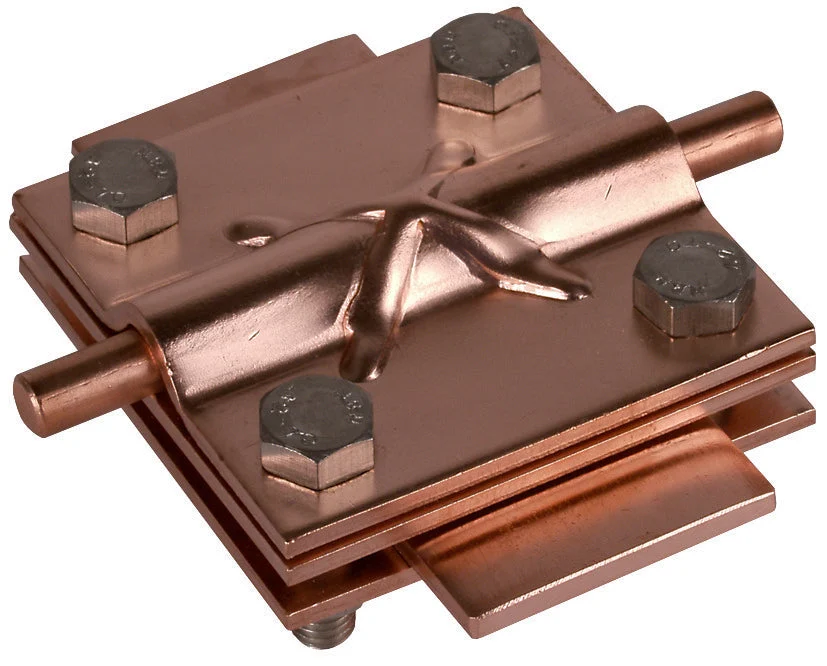

This Dehn connector, designed for lightning protection purposes, is made of copper with a cross coupling type of connection. It is compatible with a round conductor diameter ranging from 8 to 10mm, and flat conductor diameters ranging from 30 to 40mm. It does not feature any surface protection, remaining untreated. The connector is designed to be secured with hexagonal screws and is in alignment with EN 62561-1 guidelines, suitable for both aboveground and underground connections, accommodating flat conductors with a width of up to 40mm. This model comes with an intermediate plate and M8 screws.
Specifications
Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 8 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 40 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
