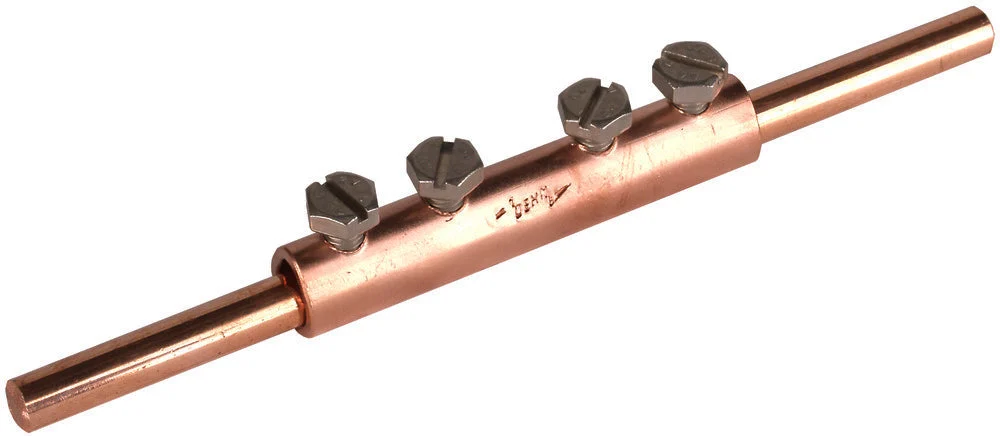

The item is a Dehn connector designed for lightning protection, made of copper. The connection type is a sleeve connection, with the diameters of the round conductors being 1 8mm and 2 8mm. The product does not have a surface protection feature, which means it is untreated. It utilizes hexagonal attachment screws for stable and sturdy fastening. The lightning current carrying capacity, under a 10/350 µs scenario, is 100kA. The item follows the specifications of Cu 8 type connecting sleeves according to EN 62561-1, meant for the longitudinal connection of two round conductors using four M6 screws.
Specifications
Type of connector : Sleeve connection
Diameter round conductor 1 (mm) : 8 mm to 8 mm
Diameter round conductor 2 (mm) : 8 mm to 8 mm
Material : Copper
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
