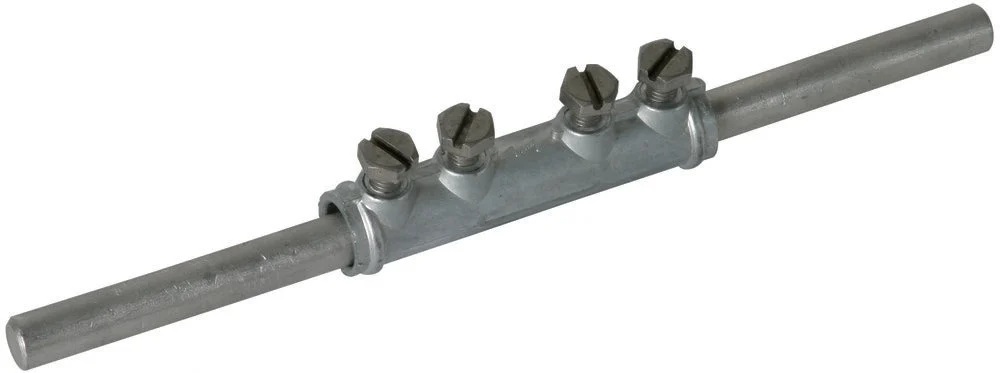

Dehn Connecting Sleeve ZDC For Rd 7-10mm With 4 Screws M6x12mm – 385202

The Dehn connector for lightning protection is constructed from pressure die-cast zinc. The type of connection used is a sleeve connection, specifically designed for the longitudinal connection of two round conductors. It can accommodate round conductor diameters ranging from 7 to 10mm. It is built to manage a lightning current capacity of 10/350µs 100kA. Although it does not come with any surface protection as it is untreated, the connector does feature hexagonal screw-type fastenings utilizing four M6 screws. The connector is compliant with EN 62561-1 standards.

Specifications

Type of connector : Sleeve connection
Diameter round conductor 1 (mm) : 7 mm to 10 mm
Diameter round conductor 2 (mm) : 7 mm to 10 mm
Material : Zinc die-cast
Surface protection : Untreated
Type of fastening screws : Hexagon screw
Lightning current load-bearing capacity (10/350 µs) (kA) : 100
