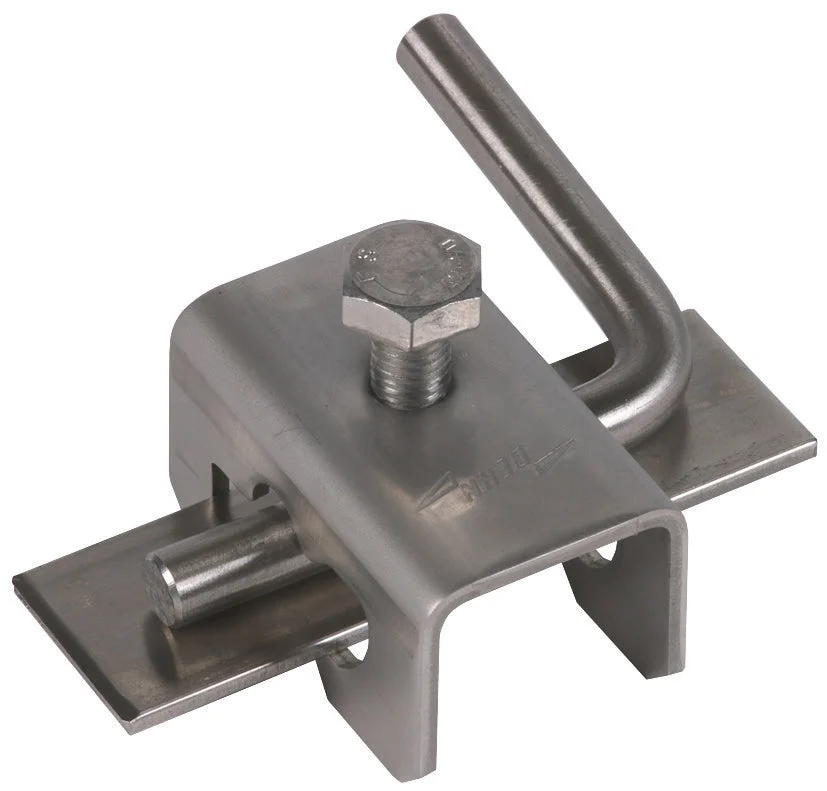

Dehn Connecting Clamp For Fl 30/Rd 10mm Cross And Parallel Connection – 308129

This is a Dehn connecting clamp for lightning protection, made of stainless steel 304 (V2A). The connector type allows for T, cross, and parallel arrangement. It is capable of connecting round conductors with a diameter of 10mm and flat conductors with a diameter of 30mm in the concrete foundation, without the need to insert the conductor. The clamp features a single-screw design without surface protection (untreated). The type of mounting screws used here is hex screw. This corresponds to the EN 62561-1 standard.

Specifications

Type of connector : T-/cross-/parallel connector
Diameter round conductor 1 (mm) : 10 mm to 10 mm
Width flat conductor 1 (mm) : 30 mm to 30 mm
Width flat conductor 2 (mm) : 30 mm to 30 mm
Material : Stainless steel V2A
Surface protection : Untreated
Type of fastening screws : Hexagon screw
