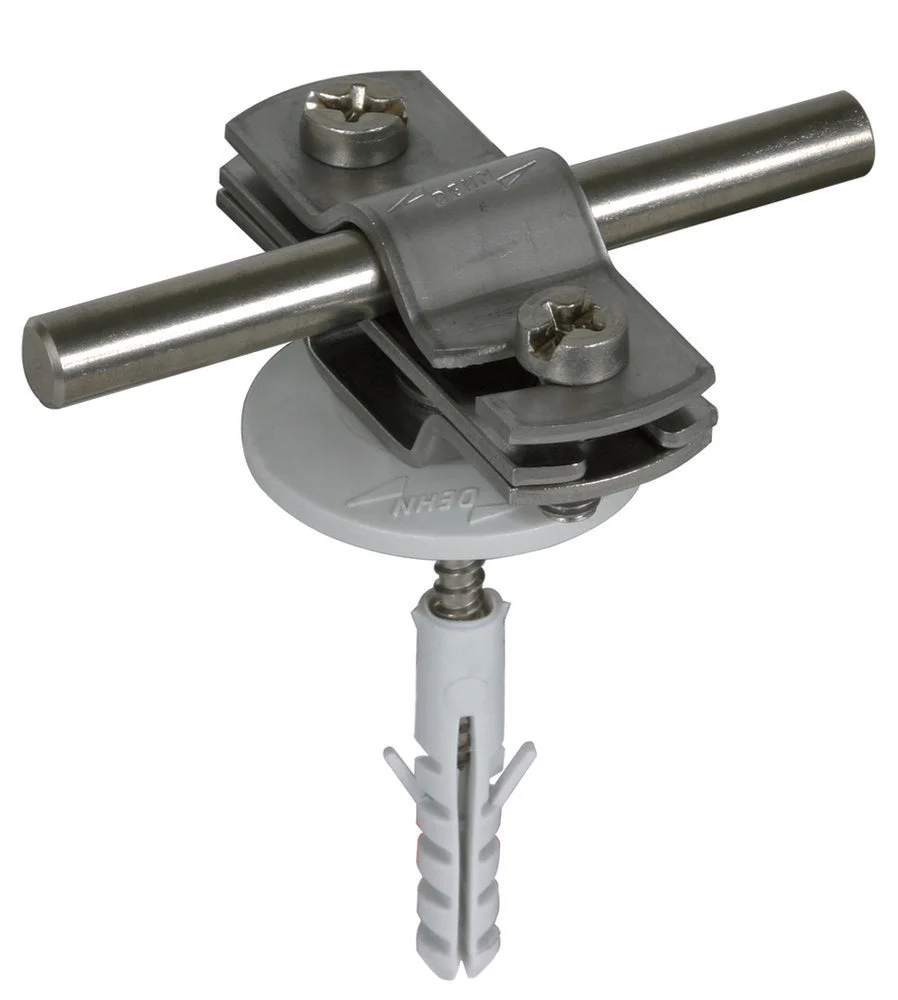

This is a Dehn conductor holder designed for lightning protection systems. It features a mounting method for conductors with a screw clamp and a holder mounting method with a plug. The height of the conductor holder is 10mm. This device is suitable for a flat conductor width of 30mm and also fits round conductors of 7 – 10mm in diameter. The base of the holder is made of plastic, while the carrier is made of RVS 304 (V2A) stainless steel. It comes pre-assembled with a wood screw, a grey plastic cover disc, and is designed with a slotted saddle clamp with 2 screws, specifically for installing round and flat conductors.
Specifications
Mounting type conductor : With screw clamp
Suitable for diameter round conductor (mm) : 7 mm to 10 mm
Suitable for width flat conductor (mm) : 30 mm to 30 mm
Material of holder : Stainless steel V2A
Mounting type holder : With plug
Material of carrier : Stainless steel V2A
Material of saddle clamp : Stainless steel V2A
Material base part : Plastic
Wall distance (mm) : 15 mm to 15 mm
Assembly height conductor holder (mm) : 10
Suitable for EX-applications : No
