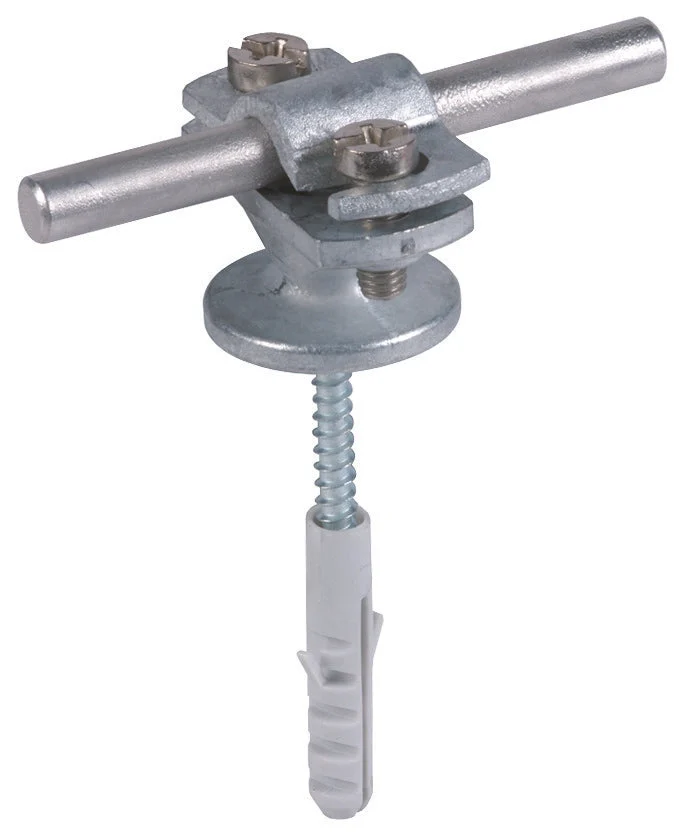

This is a conductor holder suitable for lightning protection installation, designed to hold conductors of 7-10mm diameter. It utilizes a screw clamp attachment method for the conductor and a plug for the holder. The height of the conductor holder is 20mm and it extends 20mm from the wall. The unit comes pre-assembled with a screw (thread size metric 8) and plug. The main holder and cross member are made of steel, while the base is die-cast zinc. It features a slotted saddle clamp and a fixed conductor routing system.
Specifications
Mounting type conductor : With screw clamp
Suitable for diameter round conductor (mm) : 7 mm to 10 mm
Material of holder : Steel galvanised
Mounting type holder : With plug
Material of saddle clamp : Steel galvanised
Material base part : Zinc die-cast
Thread size (metric) : 8
Wall distance (mm) : 20 mm to 20 mm
Assembly height conductor holder (mm) : 20
Suitable for EX-applications : No
