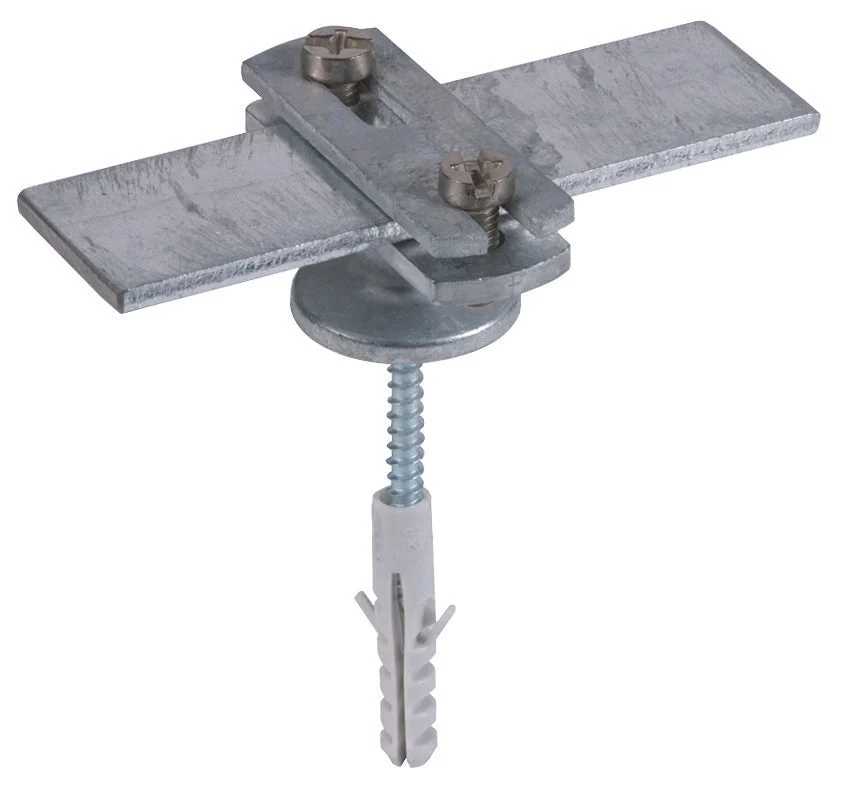

Dehn Conductor Holder With Flange And Screw For 30mm Cable – 275230

This is a Dehn flat strip holder for lightning protection purposes, equipped with a slotted clamping plate and flange for securing flat conductors. The strip holder comes pre-assembled with a screw and plug, facilitating a fixed conductor routing method. Its construction features a conductor attachment method via screw clamp and a holder attachment method via plug. The strip holder has a building height of 20mm and is suitable for flat conductors up to 30mm in width. The base part is cast in pressure cast zinc, with both the carrier and holder made of steel. Additional features include a metric thread size of 8 and a hot-dip galvanized or zinc finish for enhanced durability.

Specifications

Mounting type conductor : With screw clamp
Suitable for width flat conductor (mm) : 30 mm to 30 mm
Material of holder : Thermo galvanized steel/die-cast zinc
Mounting type holder : With plug
Material of carrier : Steel galvanised
Material of saddle clamp : Steel galvanised
Material base part : Zinc die-cast
Thread size (metric) : 8
Wall distance (mm) : 20 mm to 20 mm
Assembly height conductor holder (mm) : 20
Suitable for EX-applications : No
