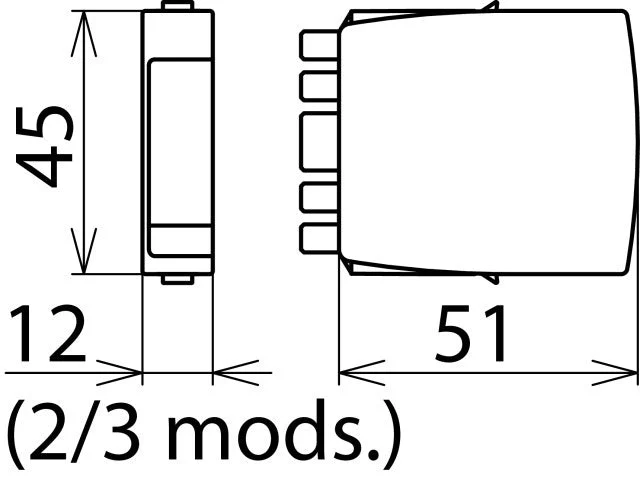

DEHN BLITZDUCTOR Surge Protector For Data/M&R – 920324

Dehn BLITZDUCTOR XT surge protector v data/m&r, rated voltage DC 33V, DIN/G-rail, rated voltage AC 24V, connection 1 terminal, max. Continuous voltage AC 23.3V, max. Continuous voltage DC 33V, rated discharge surge current (8/20) 20kA, safety level conductor/earth 66V.

Specifications

Nominal voltage AC (V) : 24 V to 24 V
Nominal voltage DC (V) : 24 V to 24 V
Max. continuous voltage AC (V) : 23.3
Max. continuous voltage DC (V) : 33
Nominal discharge surge current (8/20) (kA) : 20
Lightning impulse current (10/350 µs) (kA) : 10
Nominal load current (A) : 0.75
Voltage protection level core/core (V) : 90
Voltage protection level core/earth (V) : 45
Limiting frequency (MHz) : 6.8
Mounting method : On basic element
Connection 1 : Screw terminal
Pro-active thermo-control : Yes
With remote signalling contact : No
Explosion-tested version : Yes
Signal disconnection : No
Number of conductors (without earthing) : 4
Earthing via : DIN rail (top hat rail)
Assembly width (mm) : 12
Degree of protection (IP) : IP20
