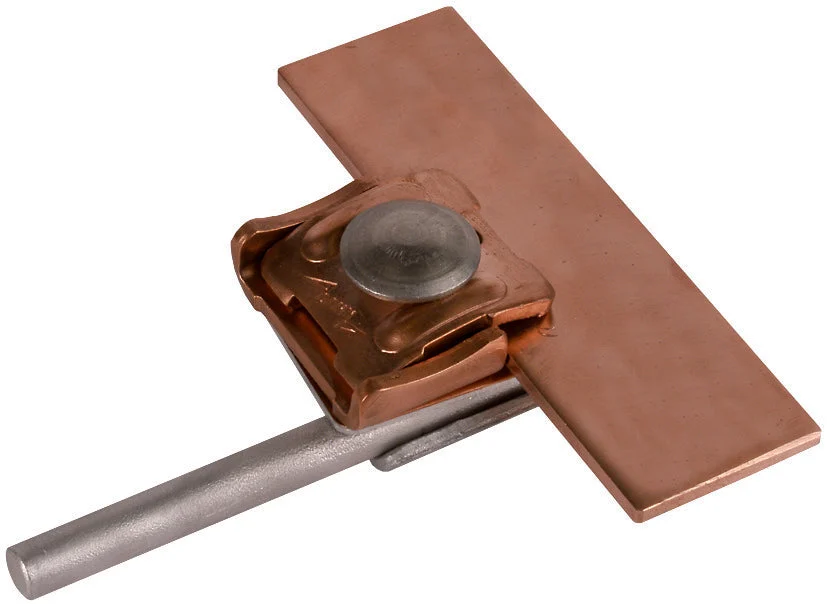

The Seam clamp, made according to EN 62561-1 standards, is designed for the purpose of connecting round conductors with seams. This bimetallic clamp is ideal for seams made of copper and comes with an intermediate plate, also known as a “Cupal”. The clamp allows for flexible installation with options for longitudinal or cross conductor routing. It is primarily used in lightning protection systems.
Specifications
Type of connector : Rebate clamp
Suitable for diameter round conductor (mm) : 6 mm to 10 mm
Clamping range (mm) : 0.7 mm to 8 mm
Material : Copper/steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Flat round screw
