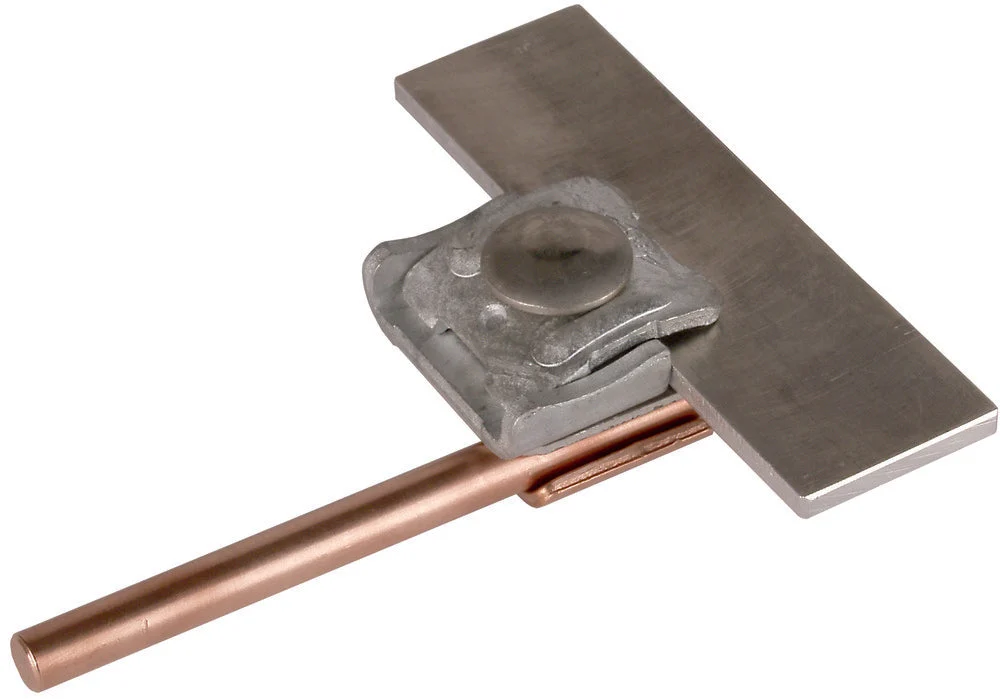

This is a seam clamp designed in accordance with EN 62561-1, specifically for connecting round conductors with seams. It features a bimetallic interface for St/tZn seams with an intermediate plate (Cupal), allowing for longitudinal or cross conductor routing. The clamp, which is copper and steel made, utilizes a bend clamp type of connection, suitable for round conductors with a diameter of 6 – 10mm. The clamp range is 0.7 – 8mm and it offers surface protection through a thermally galvanized process. It includes flat head screws for its type of attachment.
Specifications
Type of connector : Rebate clamp
Suitable for diameter round conductor (mm) : 6 mm to 10 mm
Clamping range (mm) : 0.7 mm to 8 mm
Material : Copper/steel
Surface protection : Hot-dip galvanized
Type of fastening screws : Flat round screw
