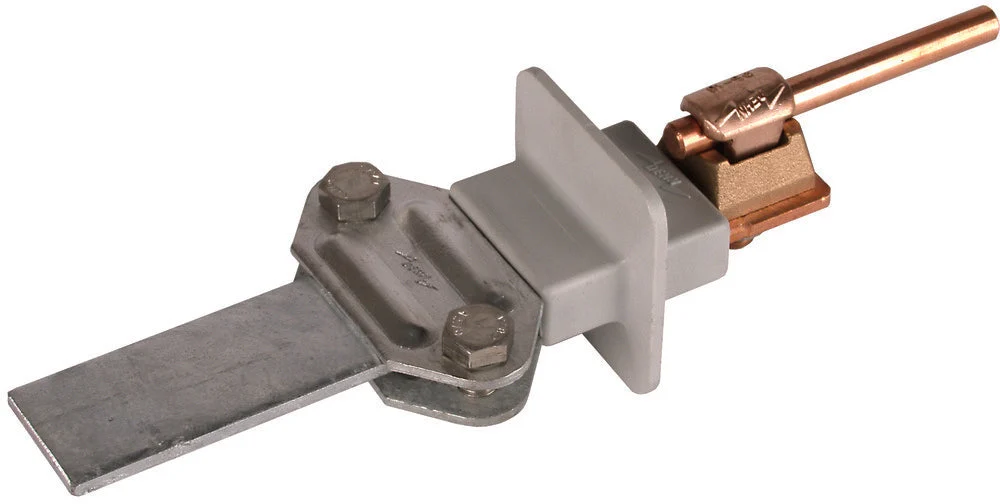

This is a bimetallic disconnecting clamp, compliant with EN 62561-1, equipped with a protective shield for attaching conductors composed of different materials. It’s suitable for a round Cu conductor of diameter ranging from 6 to 10mm, and a flat St/tZn or StSt (V4A) conductor with a diameter of 30mm or ranging from 30 to 40mm. The clamp features a surface protection that is thermally galvanized, ensuring enhanced durability and resistance against wear and tear.
Specifications
Diameter round conductor 1 (mm) : 6 mm to 10 mm
Width flat conductor 2 (mm) : 30 mm to 40 mm
Material : Copper/steel
Surface protection : Hot-dip galvanized
Bimetal connector : Yes
