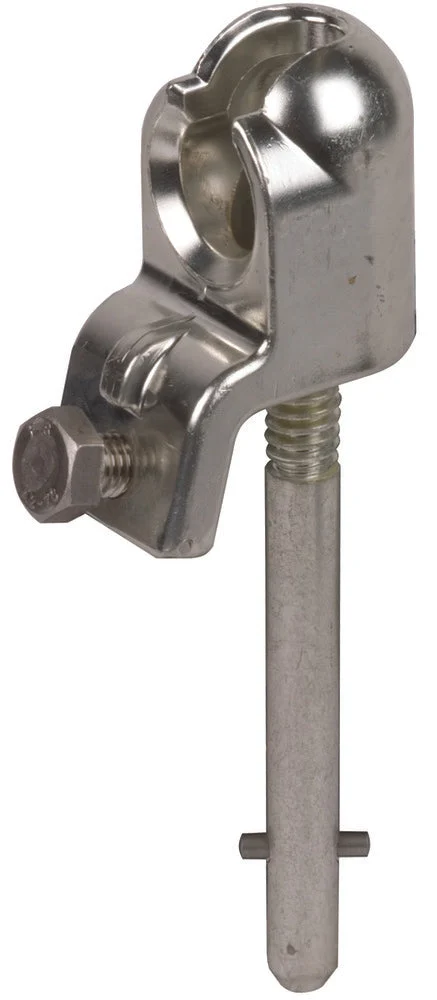

This is a rigid ball head cap designed for a long T pin shaft and is suitable for use as an earth or phase connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100). Boasting a maximum short-circuit current of 42kA, it is designed to accommodate a wire cross-section of 16 – 150mm². The attachment method entails a fixed 25mm ball point. The Dehn connector element is equipped with an anti-rotation feature (PK1) ensuring secure installation, and comes with a long T-shaft for the control rod, secured with a transverse pin.
Specifications
Max. short circuit current (kA) : 42
For wire cross section (mm²) : 16 mm² to 150 mm²
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
