Dehn Ball Head Cap 16-120mm D20mm KKH 20 SQL Accessories – 772314

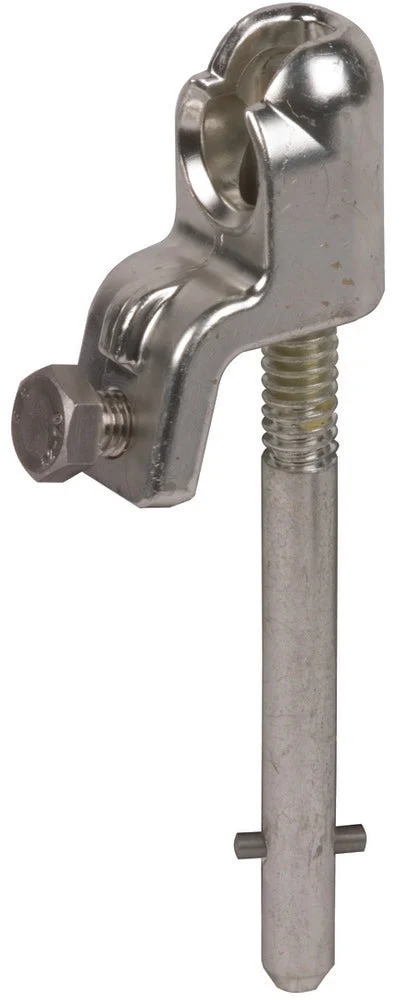

This is a rigid ball head cap with a long T pin shaft, specifically designed for use as either a phase or earth connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100). This item is suitable for fixed ball points intended for the purpose of connecting phase cables of earthing and short-circuiting devices. It can handle a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 – 120mm². The connection method involves a solid ball-point with a 20mm diameter. Other noteworthy features include an anti-rotation element, identified as PK1, and a spindle-mounted operating rod secured with a cross pin.

Specifications

Max. short circuit current (kA) : 33.5
For wire cross section (mm²) : 16 mm² to 120 mm²
Connection type : Fixed ball point 20 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
