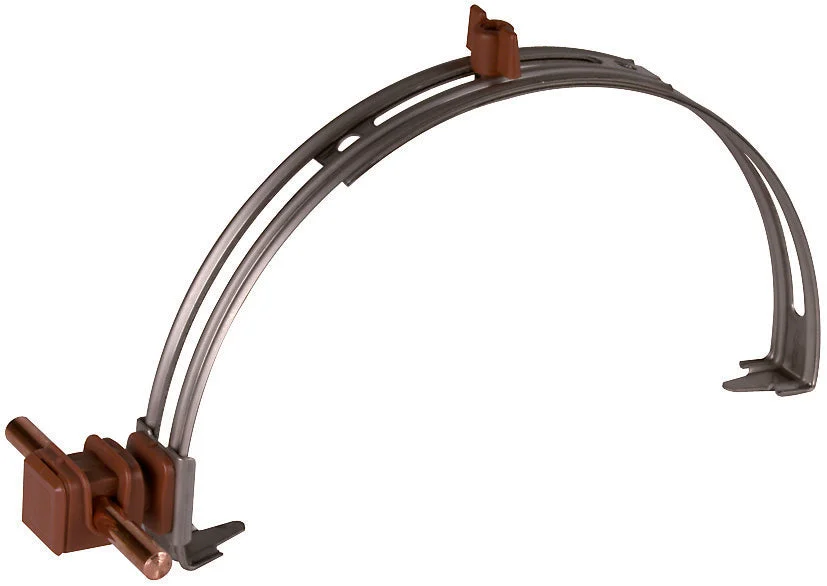

The DEHN DEHNsnap roof conductor holder is used for lightning protection and is suitable for mounting conductor with a clamp clip. Its conductor holder is 16mm in height and made from 304 stainless steel (V2A) while the holder is made of plastic. The nominal conductor diameter of the holder is 8mm and it has a clamping range between 180 – 280mm. It’s specifically designed for applications on ridge tiles. In addition, the DEHNsnap allows for loose conductor routing and is laterally adjustable from top centre to bottom. Both weather-resistant and UV-stabilised, it is also halogen-free for added safety.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 16
