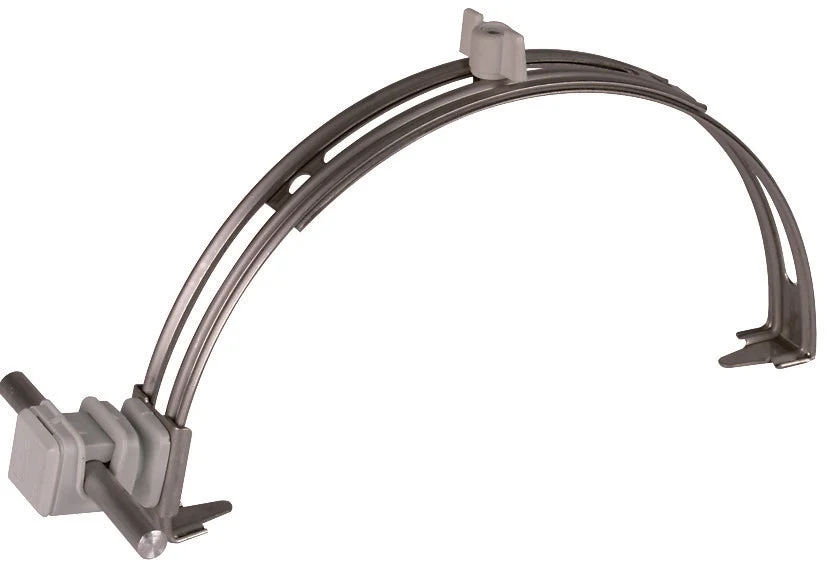

The DEHN DEHNsnap roof conductor holder is a lightning protection device designed for securing the air-termination conductor on the ridge tiles. This tool offers adjustable and loose conductor routing from top centre to the bottom and can be adjusted laterally. Made from UV-stabilised, weather-resistant, halogen-free plastic, it centres on a support made from RVS 304 (V2A). The conductor holder has a construction height of 16mm and can accommodate a nominal conductor diameter of 8mm. Its clamping range is between 180 – 280mm.
Specifications
Mounting type conductor : With snap clamp
Conductor diameter (mm) : 8 mm to 8 mm
Application : Ridge/hip
Mounting method : Stretchable
Clamping range (mm) : 180 mm to 280 mm
Material of holder : Plastic
Material of carrier : Stainless steel V2A
Assembly height conductor holder (mm) : 16
