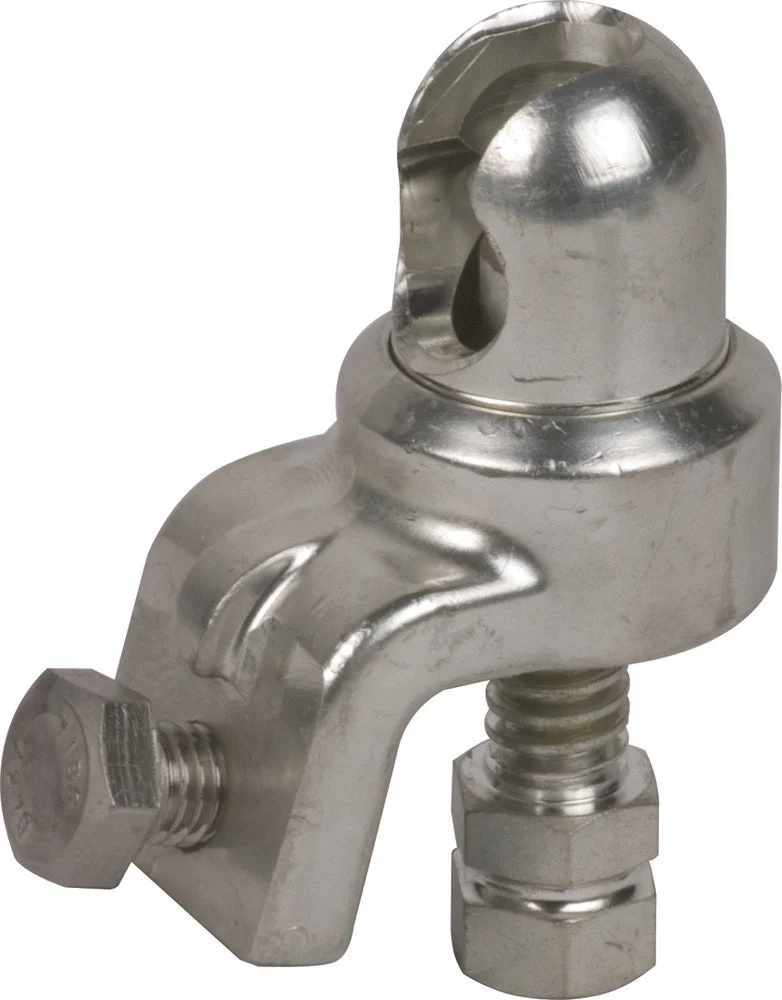

This is an adjustable ball head cap with a configuration of 4 x 90° and a hexagon shaft. For practical use as a phase or earth connecting element, it complies with EN/IEC 61230 (DIN VDE 0683-100) standards. Specifically designed for fixed ball points, it facilitates attachment to earthing and short-circuiting devices. The component also incorporates a PK1 anti-rotation element. The maximum short-circuit current that it can handle is 42kA, and it can accommodate wire cross-sections from 16 to 150mm². The connection method is a ball fast point of 25mm, and it includes a twist-lock feature. The control rod spindle is attached using a hexagon.
Specifications
Max. short circuit current (kA) : 42
For wire cross section (mm²) : 16 mm² to 150 mm²
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with hexagon
Application : Phase-side
