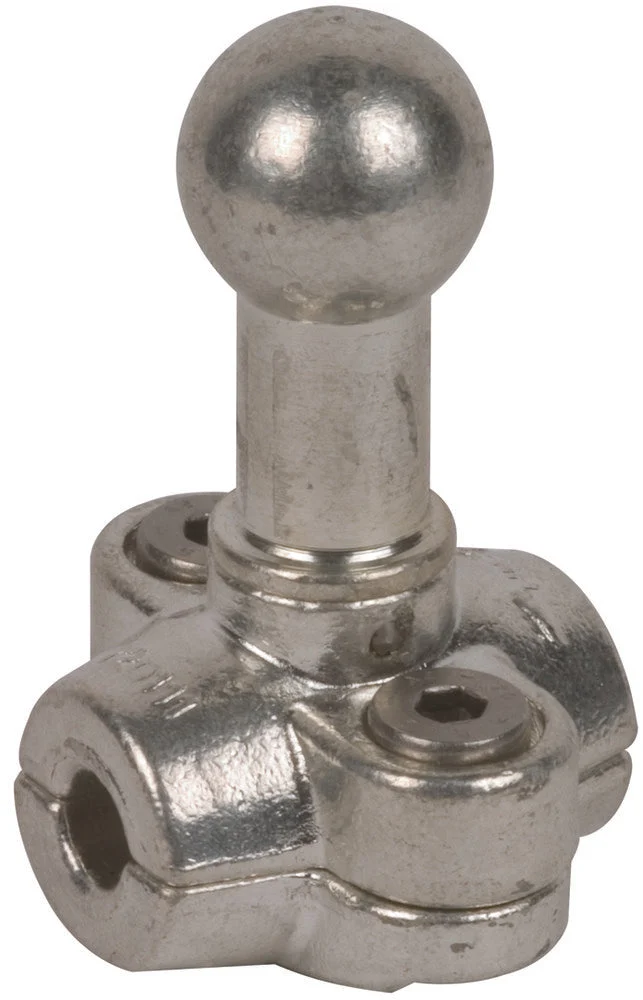

DEH KFP 25 RL 14 Fixed Ball Point D 25mm Clamp Type A – 725014

This is a fixed ball point with a diameter of 20mm, designed for round copper conductors and suitable for use as a connection point on both phase-side and earth-side in line with EN/IEC 61230 (DIN VDE 0683-100) standards on the conductor and earthing system. It is equipped with stainless steel fixing screws. It can handle a maximum short-circuit current of 26.5kA and features a straight design. This connection point can accommodate round conductors and has a maximum wire cross-section of 95mm² for copper. The diameter of the fixed point is 25mm and the maximum connection of the earthing and spherical fixed point is also 25mm.

Specifications

Max. short circuit current (kA) : 26.5
Construction type : Straight
Mounting method : For circular conductor
Connection of the earthing and short circuit device : Fixed ball point 25 mm
Max. wire cross section copper (mm²) : 95
Diameter fixed point (mm) : 25
Suitable for round conductors : Yes
