About this item
- Input Voltage: 12V DC; Peak Force :3N Holding Force : 2.5N Duty-cycle (ED%) : 50%; Electric time:Less than 7 minutes ; Thread Size : M3*4; Material: Pure Iron
- Overall Size : 8 x 20mm / 0.3 x 0.8inch(Dia. *T); Lead Length : 24cm/9. 5 inch; Lead Color: Black / Blue（Random）
- Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
- Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
- Use PA66GF30 nylon plastic for framework; high temperature resistance
Feature:
- Electric lifting magnet
- Powerful and compact
- Smooth and flat surface
- Low consumption and reliable
- Applications: assembly line, sorting machine, mechanical arm, experimental facility, etc
Note:The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.
It is recommended that the actual force is less than 80% of the sucked force on the name plate.
Specification:
- Material: Metal
- Input Voltage: 12V DC
- Peak Force :3N
- Holding Force : 2.5N
- Duty-cycle (ED%) : 50%;
- Electric time:Less than 7 minutes ;
- Overall Size : 8 x 20mm / 0.3 x 0.8inch(Dia. *T)
- Thread DIA : 3mm
- Lead Length : 24cm/9. 5 inch
- Lead Color: Black / Blue(Random)
Package Includes:

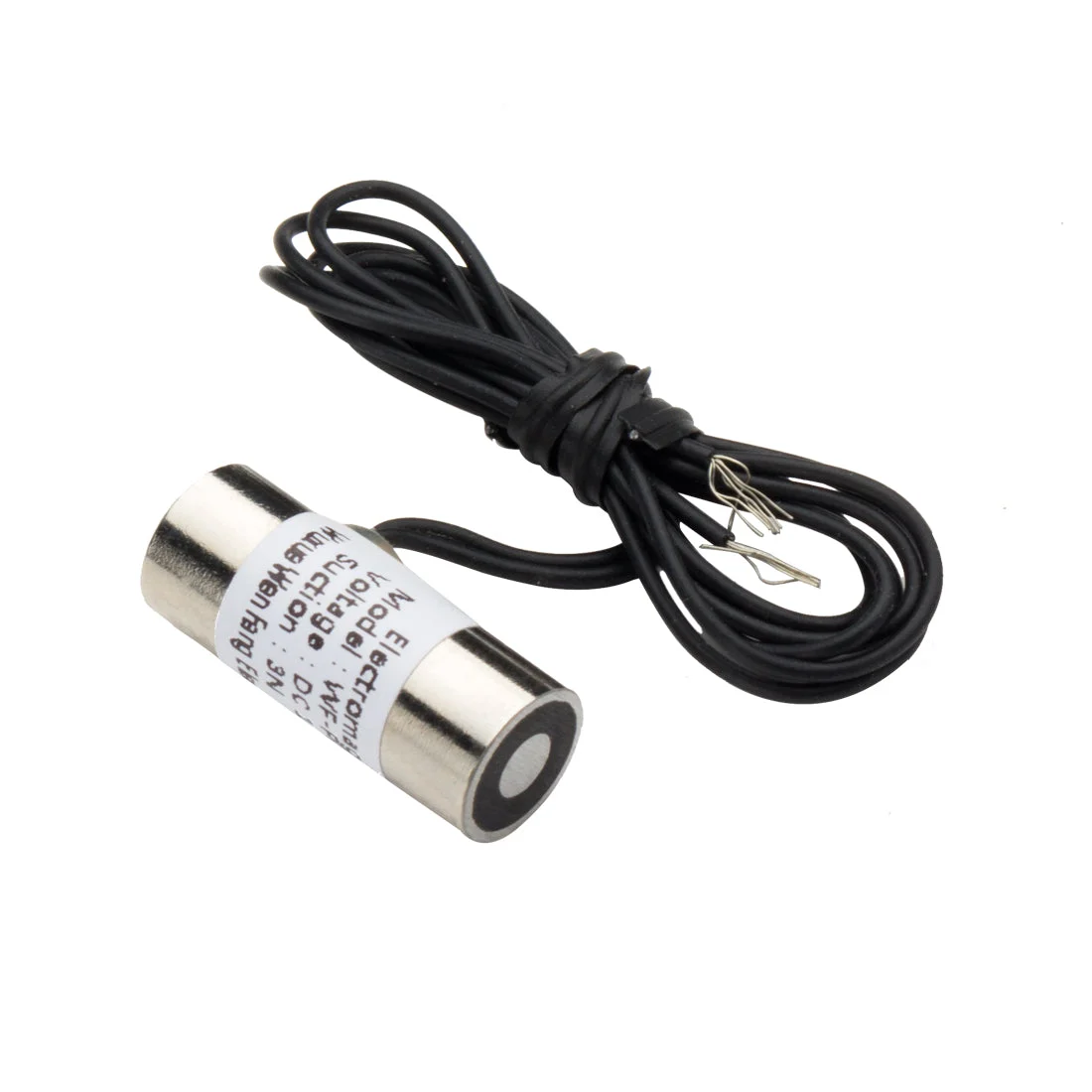

- 1 x Holding Electromagnet
