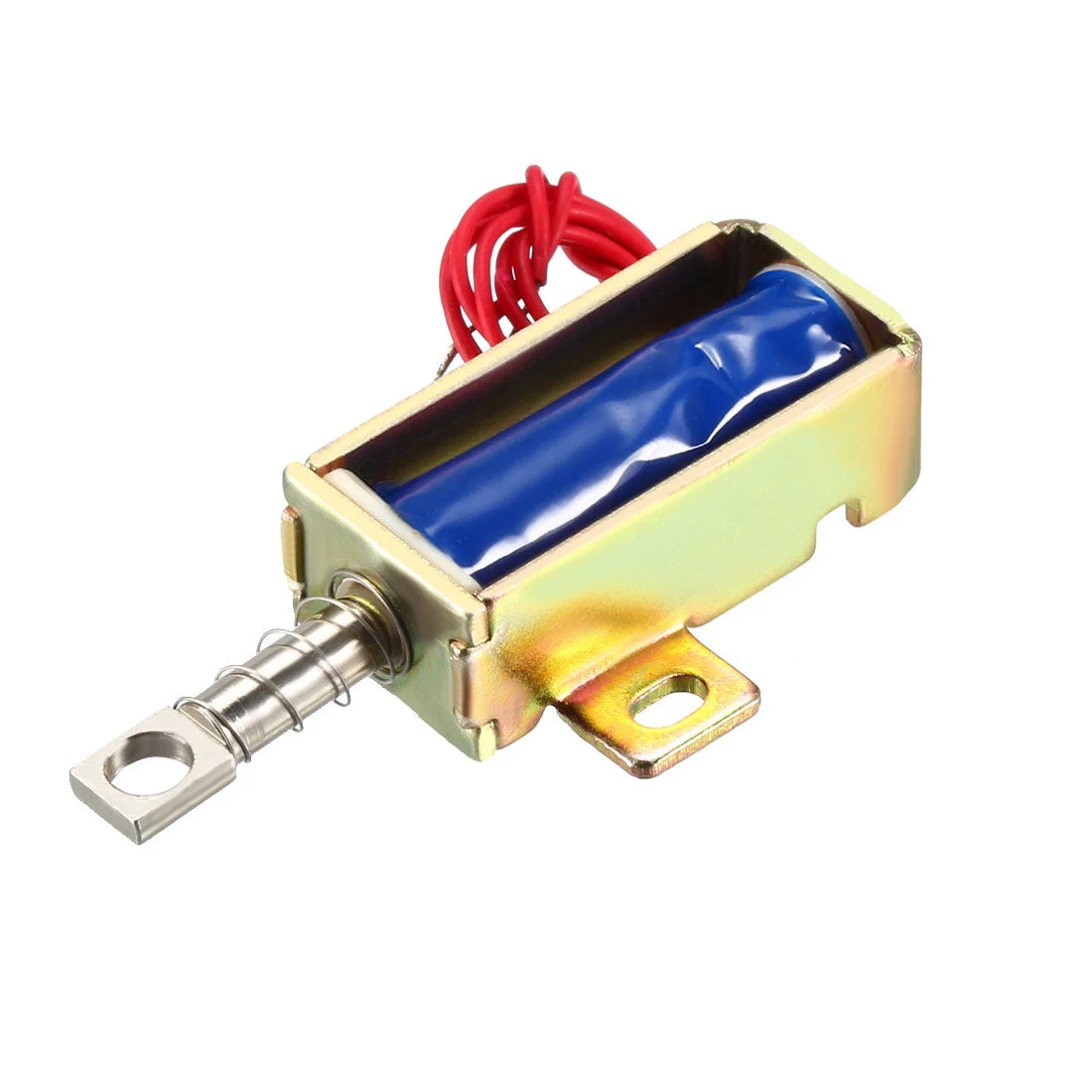

About this item
- Voltage & Current : DC12V 2A; Stroke & Force : 5mm, 260g
- Action Type: Pull; Energized Forms: Intermittent; Package Content : 1 x Electromagnet Solenoid Lock
- Easy to Install – It’s with simple structure,and it can save the energy and the time during the installation for you.
- With Low Use Cost – This electric lock use instantaneous power, can save power for you. So it can save money for you.
- Small Size and Light Weight – It just takes up a small space which is perfect lock to be used for the small box or small cabinets.
Specification:
– Voltage & Current : DC 12V 2A
– Stroke & Force : 5mm, 260g
– Action Type: Pull
– Energized Forms: Intermittent
– Body Size: 30 x 27 x 10mm / 1.18 x 1.06 x 0.39 inch (L*W*H)
– Plunger Bar Size: 34 x 4.5mm / 1.34 x 0.18 inch (L*D)
– Mounting Hole Size: 4 x 2.5mm / 0.16 inch x 0.1 inch (L*W)
– Mounting Hole Distance: 22mm / 0.87 inch (L*W)
– Package Content : 1 x Electromagnet Solenoid Lock
Instructions for Use:
– The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.
