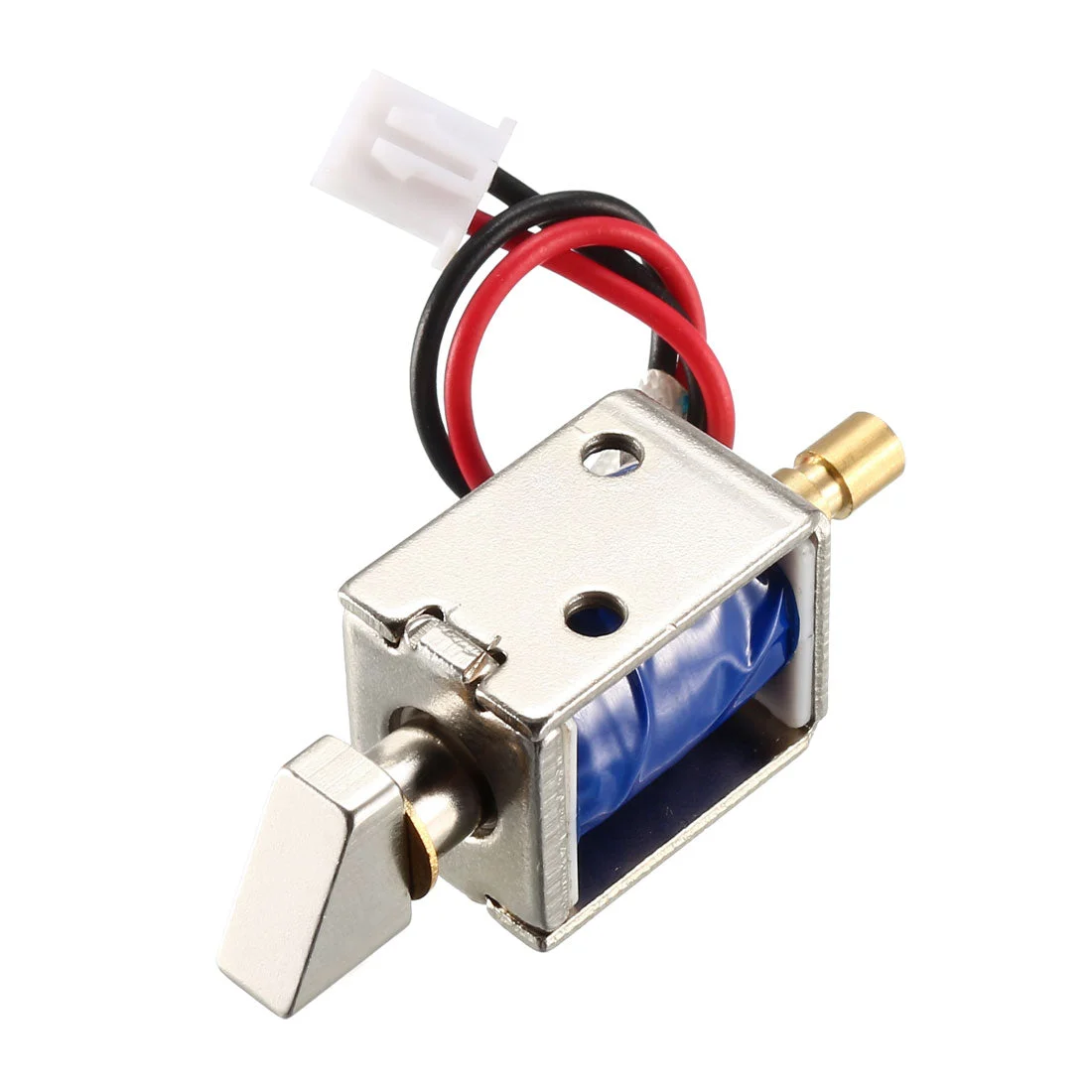

About this item
- Voltage & Current : DC12V 1.33A; Stroke & Force : 4mm, 110g
- Action Type: Push Pull; Energized Forms: Intermittent; Package Content : 1 x Electromagnet Solenoid Lock
- Easy to Install – It’s with simple structure,and it can save the energy and the time during the installation for you.
- With Low Use Cost – This electric lock use instantaneous power, can save power for you. So it can save money for you.
- Small Size and Light Weight – It just takes up a small space which is perfect lock to be used for the small box or small cabinets, such as deposit box, cabinets, safes etc.
Specification:
– Voltage & Current : DC12V 1.33A
– Stroke & Force : 4mm, 110g
– Action Type: Push Pull
– Energized Forms: Intermittent
– Lock Tongue Size: 10 x 5 x 8mm / 0.39 x 0.2 x 0.31 inch (L*W*H)
– Body Size: 20 x 16 x 13mm / 0.79 x 0.63 x 0.51 inch (L*W*H)
– Package Content : 1 x Electromagnet Solenoid Lock
Instructions for Use:
– When the circuits is charged, the lock tongue will pull back by 4mm and the door will be unlocked.
– After the circuits is powered off, the lock tongue will extend to lock the door.
– The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.
– When it has been connected the wire and the current is available, the electric lock can control door’s opening and closing.
