About this item

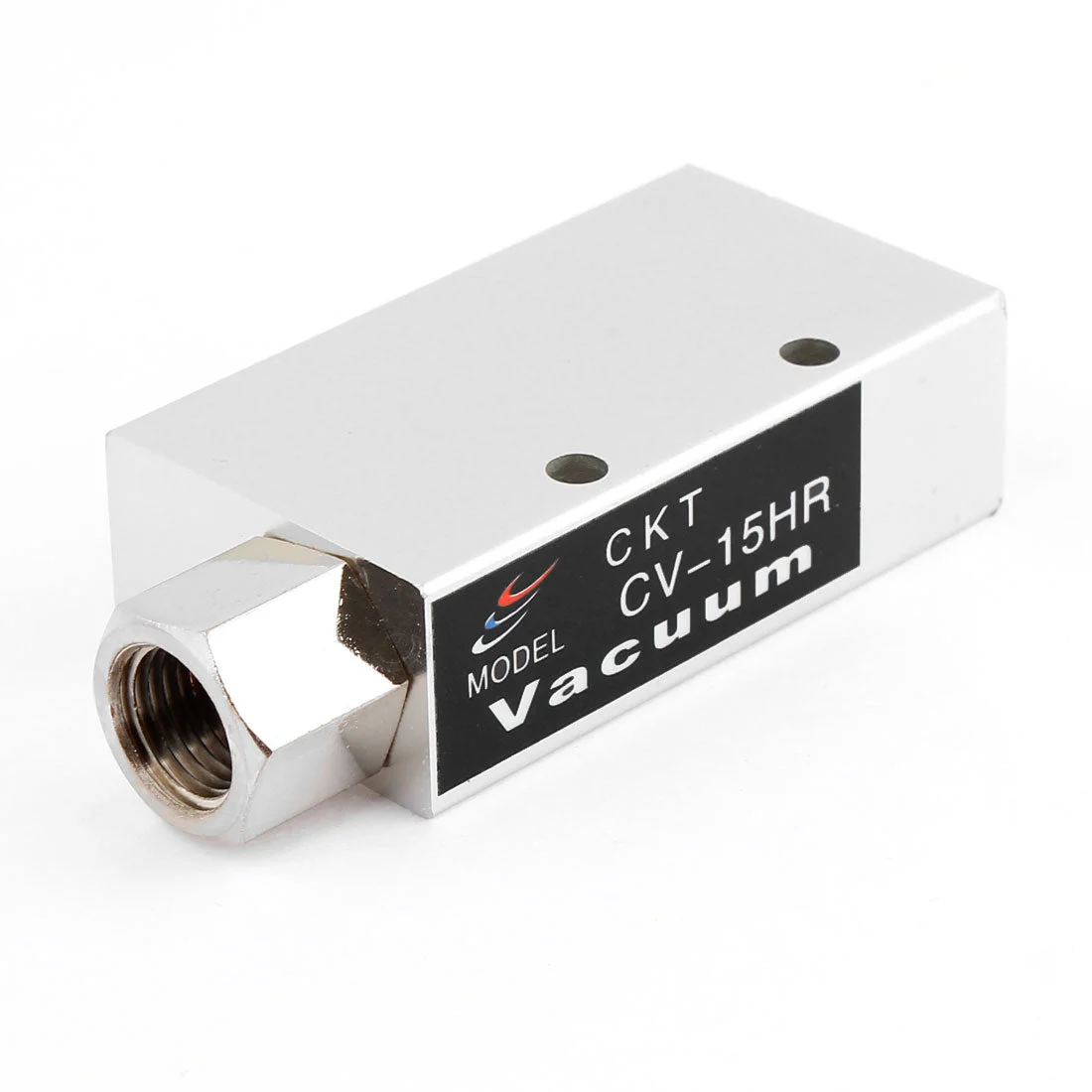

- Product Name : Vacuum Ejector;Model : CV-15HR;Nozzle Diameter : 1.5mm;Vacuum Thread Dia : 11.44mm/ 1/4″PT
- Inlet Thread Dia : 11.44mm/ 1/4″PT;Outlet Thread Dia : 11.44mm/ 1/4″PT;Mounting Size : 4.3 x 25mm/ 0.17″ x 0.98″ ( Hole Dia * Distance);Flow Medium : Air
- Operating Pressure : 0.1 ~ 0.6Mpa;Air Consumption : 95 L/min;Vacuum Degree : -20-88Kpa
- Working Temperature : 0-60oC;Total Size : 78 x 35 x 20mm/ 3.1″ x 1.4″ x 0.79″ (L*W*T);Main Material : Aluminum Alloy
- Color : Silver Tone;Net Weight : 131g;Package : 1 x Vacuum Ejector
- Great replacement for the broken one.
- The air directly through the exhaust valve quickly exhaust, cylinder to achieve rewind action.
- Suitable for industrial field use.
