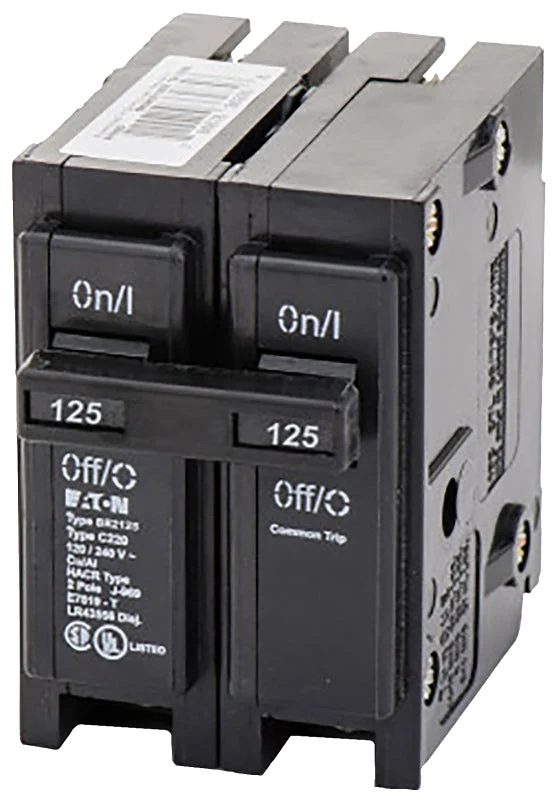

Interchangeable, will replace: Bryant, Challenger and Westinghouse. Type BR. 120/240 V. 10 kAIC, 10,000 AIR. 2 spaces, 2 in per breaker.
Unit: EA
MPN: BR2125
UPC: 786676367059
Features
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
Additional Information
- Actuator Type: Quick-Make Quick-Break
- Current Rating: 125 A
- Dimensions: 2.952 in L x 1.97 in W x 2.55 in H
- Interrupt Rating: 42 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 2
- Operating Frequency: 50/60 Hz
- Operating Temperature: 60 to 75 deg C
- Suitable for: Overload and Short Circuit Protection of Electrical System
- Type: Mini Type BR
- Voltage Rating: 120/240 V
- Wire Size: 4 to 2/0 AWG
Application: For protecting the wires in home from overheating and fault currents
Warranty: 10 Year Limited
