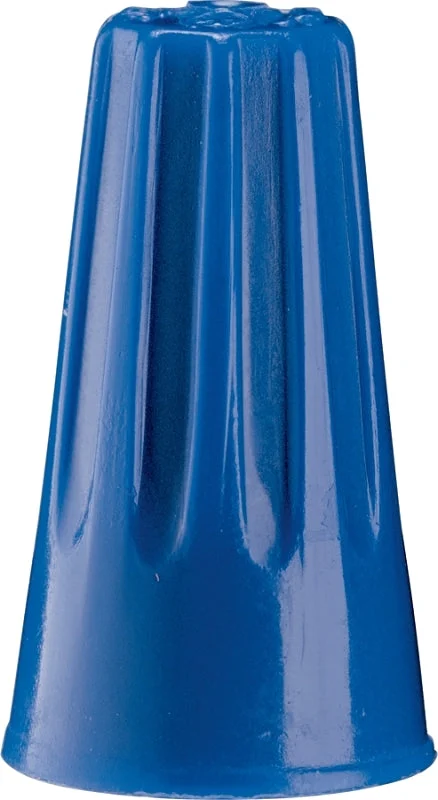

The industry’s standard twist on connector with quality performance and durability. GB specifies this connector for a wire range of 22 to 16 AWG and recommends a wire combination of min (3) #22 wire and max (3) #16. It is blue in color for easy color code identification. Recommended for copper to copper connections only. Made from tough, thermoplastic shells which guard against hydrocarbons, diluted acid or alkaline solutions.
Unit: BX100
UPC: 032076100025
Model Number: 10-002
Features
- Designed to require fewer turns to reach required torque and meet or exceed UL pull-out and dielectric test requirements
- Square wire zinc-plated spring instantly adjusts to the shape and size of the splice
- Flame-retardant properties resist heat distortion up to 221 deg F
- High-dielectric shell features deep skirt design to prevent exposure of bare wire
- Rated at 300 V max
- Copper to copper connections only
Additional Information
- Color: Blue
- Contact Coating: Zinc
- Contact Material: Steel
- Housing Material: Polypropylene
- Length: 25/64
- Mounting Type: Screw
- Voltage Rating: 300 V
- Width: 25/64
- Wire Size: 22 to 16 AWG
