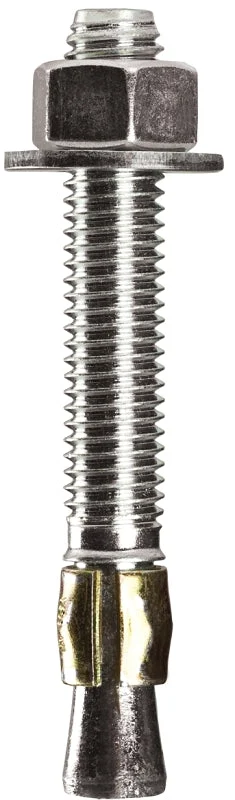

The Parawedge anchor stud is cold formed and consists of a threaded section with standard coarse bolt threads at one end and a parabolic shaped taper mandrel neck at the opposite end for a smoother expansion. It has a 360 deg clip for more contact, a torque controlled expansion and can be installed into a bottomless hole.
Unit: PK 4
UPC: 058060018404
Model Number: 491R
Features
- A taper shaped mandrel neck for a smoother expansion
- A 360 deg parabolic clip for more contact thus stronger
- Can be installed into bottomless hole
- Cold formed for increased strength
Additional Information
- Diameter: 1/4 in
- Drill Size: 1/4 in
- Finish: Plated
- Length: 2-1/4 in
- Material: Steel
- Minimum Embedment Depth: 2 in
- Shear Strength: 1829 lb
- Tensile Strength: 3304 lb
- Thread Length: 1-1/4 in
- Weight Capacity: 449 lb
