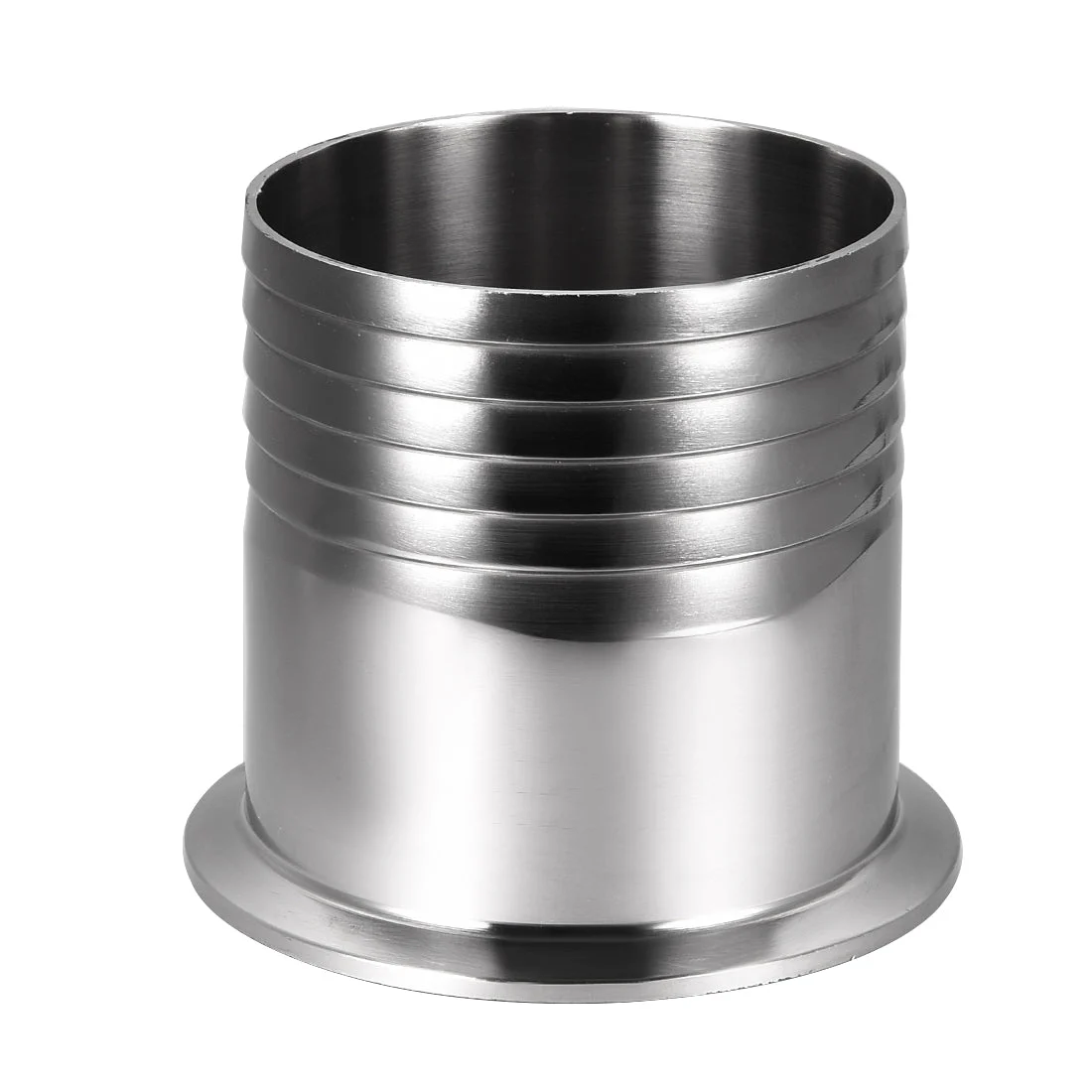

Clamp Hose Adapter 3.583″ Flange to 3″ Hose Barb Fitting

About this item

• 76mm barb is for 3″ inner diameter hose
• 91mm (3.583″) flange. Join the flange end with a gasket and secure with a clamp
• The flanges are often called quick flange fittings because they are quick to assemble.
• This rubber hose adapter is made of type stainless steel 304 for corrosion resistance.
• Material: 304 Stainless Steel; Package Content: 1 x Flange Barb Adapter

FEATURES:

-This series rubber hose adapter is made of type stainless steel 304 and connects two rubber hoses. It has a barbed end to create a tight seal on the inside diameter (ID) of a hose. To complete a connection, you’ll need two fittings, a clamp, and a gasket (all sold separately). It is made of type 304 stainless steel for corrosion resistance. This hose adapter is for use with rubber hoses in the food, dairy, and beverage industries.

-When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).

Specification:

Material: 304 Stainless Steel

Finish: Polished

Barb: 76mm (Fit Hose I.D.: 3″)

Flange OD: 91mm (3.583″)

Total Height: 60mm (2.36″)

Package Content:

1 x Hose Barb Adapter
