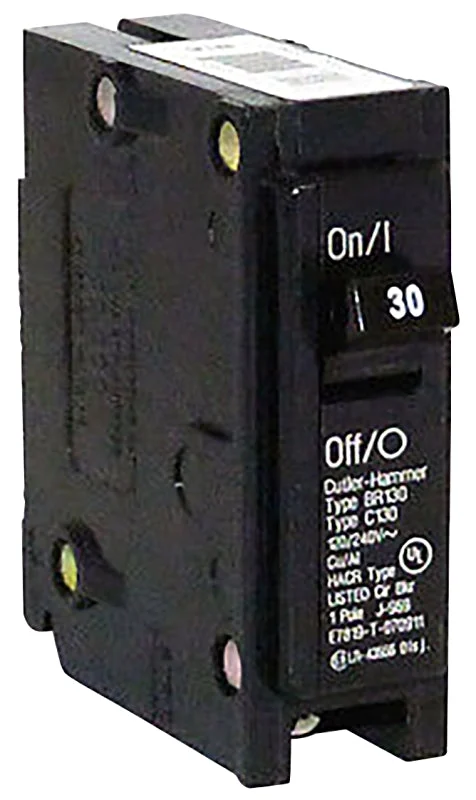

Switching duty rating. Thermal magnetic 40 deg C. Interchangeable, will replace Bryant, Westinghouse and Challenger. Type BR. 120/240 V, 10,000 AIR. 1 in per pole.
Unit: EA
MPN: BR130
UPC: 786676362207
Features
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
Additional Information
- Actuator Type: Quick-Make Quick-Break
- Current Rating: 30 A
- Dimensions: 2.92 in L x 0.98 in W x 2.89 in H
- Interrupt Rating: 42 kA
- Mounting Type: Plug
- Number of Phases: 1
- Number of Poles: 1
- Operating Frequency: 50/60 Hz
- Operating Temperature: 40 deg C
- Type: Mini Type BR
- Voltage Rating: 120/240 V
- Wire Size: 14 to 4 AWG
Application: For overload and short circuit protection of home electrical system
Warranty: 10 Year Limited
