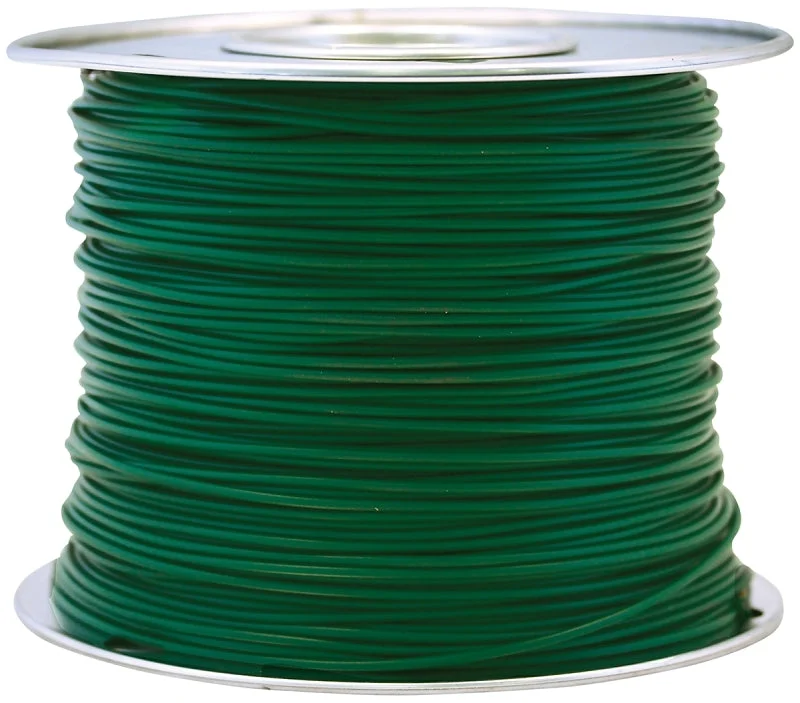

CCI 56422023 Primary Wire, 16 AWG Wire, 1-Conductor, 60 VDC, Copper Conductor, Green Sheath, 100 ft L, Pack of 2

For vehicle electrical systems at nominal voltage of 60 VDC (25 VAC) or less. PVC outer jacket resists water, oil and chemicals. Full gauge stranded copper for higher current carrying capacity. SAE Standards and RoHS compliant.
Unit: COIL
UPC: 032886852855
Model Number: 56422023

Features

• For higher current carrying capacity

Additional Information

• Conductor Insulation: PVC
• Conductor Material: Copper
• Length: 100
• Number of Conductors: 1
• Operating Temperature: 185 deg F
• Sheath Color: Green
• Sheath Diameter: 0.105 in
• Strands per Conductor: 19
• Voltage Rating: 60 VDC
• Wire Size: 16 AWG
