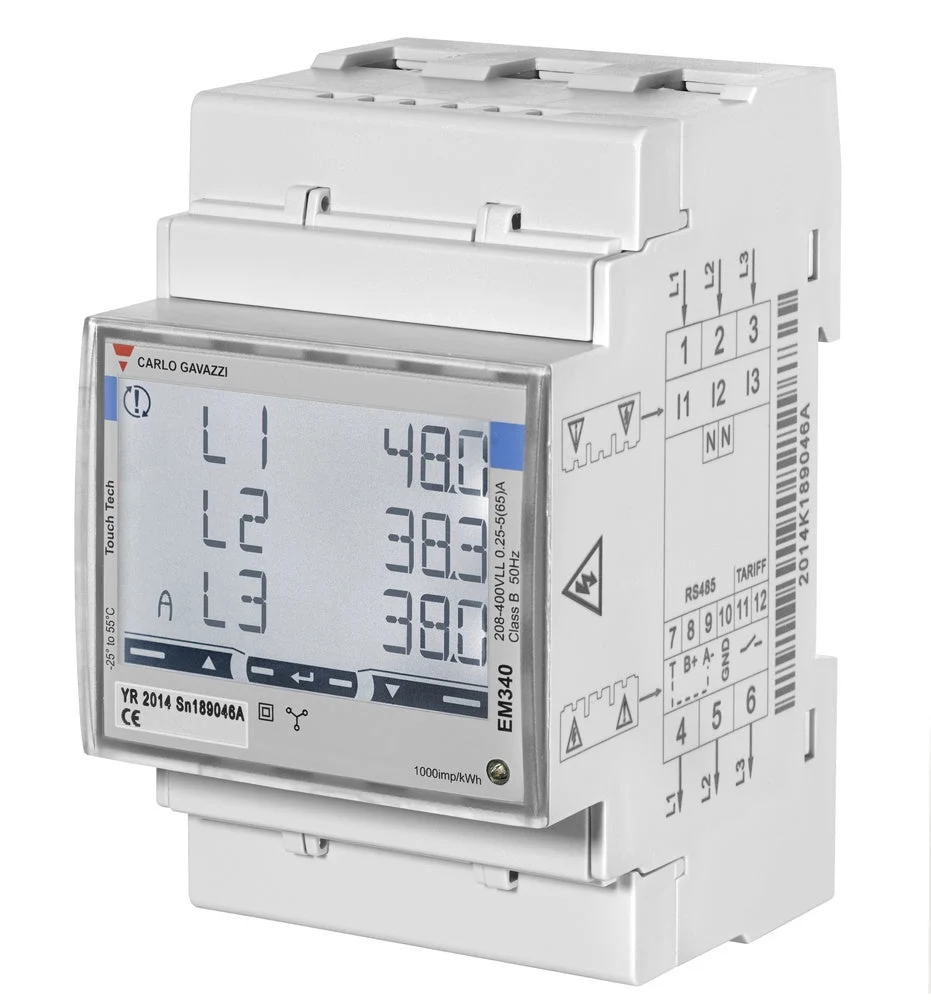

Carlo Gavazzi Electricity Meter – EM340DINAV23XO1X

The carlo gavazzi em340 series is three-phase energy meter with backlit lcd display with integrated touch keypad. Particularly indicated for active energy metering and for cost allocation in applications up to 65 a (direct connection), with dual tariff management availability. It can measure imported and exported energy or be programmed to consider only. Pulse output. Self power supply. Protection degree for front is ip51. Easy connection or wrong current direction detection.

Specifications

Type of meter : Electronic
Nominal current (In) (A) : 5
Max. current (Imax) (A) : 65
Nominal voltage (Un) N-L (V) : 113 V to 265 V
Nominal voltage (Un) L-L (V) : 196 V to 460 V
Frequency (Hz) : 45 Hz to 65 Hz
Accuracy class : B
Pole type : Three conductor/four conductor
Model : Direct measurement
Energy type : Effective power and blind power
Suitable for : Purchase/supply
Tariff type : Two-tariff
Tariff control : External
Measurement type load profile : No
Escapement mechanism : No
Calibrated : Yes
Pulse output : Electrical
Pulse type : S0
Pulse rate (Imp/kWh (kvarh)) : 100 Imp/kWh (kvarh) to 1500 Imp/kWh (kvarh)
Type of indication : Digital
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 3
Type of interface : Other
EEC40 signature : No
With lock code : Yes
Number of positions total (counter) : 8
Degree of protection (IP) : IP51
Degree of protection (NEMA) : 1
