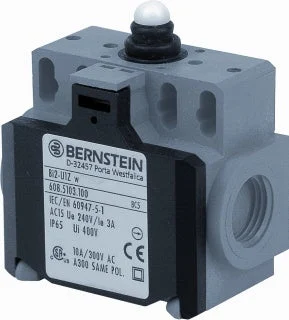

Bernstein limit switch, control element type bump cam, housing plastic, actuator body pin, protection rating (IP) IP65, switching function no torque switching, electrical connection type cable entry metric, 1 break contact, suitable for safety function.
Specifications
Width sensor (mm) : 58
Height of sensor (mm) : 32
Length of sensor (mm) : 62
Rated operation current Ie at AC-15, 230 V (A) : 3
Switching function : Slow-action switch
Switching function latching : No
Output electronic : No
Forced opening : Yes
Number of safety auxiliary contacts : 1
Number of contacts as normally closed contact : 1
Number of contacts as normally open contact : 1
Number of contacts as change-over contact : 0
Type of interface : None
Type of interface for safety communication : None
Construction type housing : Special construction
Material : Plastic
Type of control element : Plunger
Alignment of the control element : Other
Electrical connection : Cable entry metrical
Status indication : No
Suitable for safety functions : Yes
Explosion safety gas : None
Explosion safety dust : None
Ambient temperature during operating (°C) : -30 °C to 80 °C
Degree of protection (IP) : IP65
Degree of protection (NEMA) : 4X
