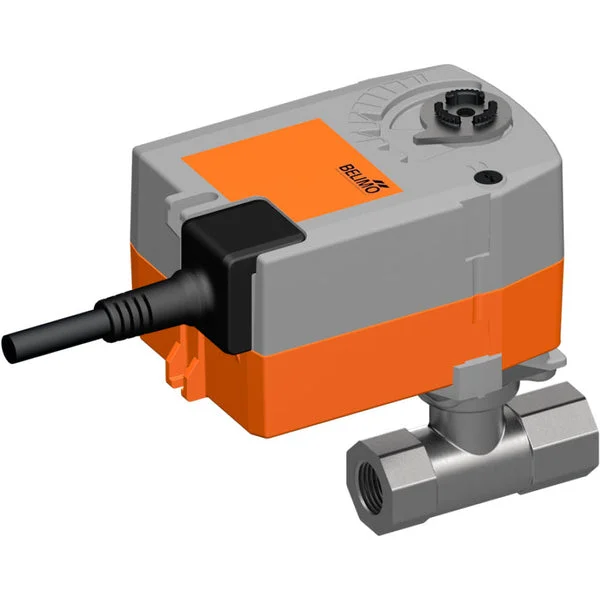

This is a Belimo 2-way characterized ball valve with a nickel-plated brass housing and EPDM sealing. The bore diameter of the valve is DN 15 and the port size is Rp 1/2 inch with female threads. With its integrated characterizing disc, it ensures equal percentage flow control, enabling precise and consistent regulation of fluid flow. The maximum pressure differential is 3.5 bar (50.8 psi). The valve can operate between -10 and 120 °C (14 to 248 °F). The Kv value of the valve is 1 m3/h, equivalent to a Cv-value of 1.16 gpm. The actuator requires a supply voltage of 24 V AC/DC. The actuator features three-point (open-close) control. The actuator opens/closes the valve in 90 seconds. The actuator has an IP42 rating. The actuator is equipped with a fail-safe (NC) feature that ensures safe operation in the event of a power failure.
Manual override is possible using a lever, which disengages the gearing as long as the self-resetting lever is pressed. The actuator, equipped with overload protection, doesn’t need limit switches and will stop automatically when the end stop is reached. The actuator can be directly mounted on the ball valve using a single screw. The mounting orientation relative to the ball valve can be chosen in 90° increments. The actuator simultaneously moves the valve to the operating position and tensions the return spring. If the power source is cut off, the valve reverts to the fail-safe position driven by the spring force.
Pros:
- The integrated characterized disc ensures equal percentage flow, ideal for heating circuits
- The actuator is equipped with a fail-safe feature
Specifications
Connection size : 1/2 inch
Voltage : 24 V AC,24 V DC
Material : Brass
Seal material : EPDM
Control signal : Three-point (open-close)
Max pressure difference (bar) : 3.5
Closing pressure (bar) : 14
Operating time (s) : 90
Connection type : Inner thread cylindrical BSPT-Rp
Ball valve feature : NC Normally closed
Kv value [m3/h] : 1
Max actuator torque (nm) : 2.500
Max temperature (°C) : 120
Min temperature (°C) : -10
Material quality : Dezincification resistant brass (DZR)
Degree of protection (IP) : IP42
Manual override : No
Ground characteristic : Equal percentage
Safety function : NC Normally closed
Adjustable operating range : No
Allowable relative humidity (%) : 0 % to 95 %
Ambient temperature (°C) : -30 °C to 50 °C
Max. electric power input (VA) : 4
Surface protection : Nickel-plated
Transmission : With cogwheels
Energy consumption at rest (W) : 1
Energy consumption in operation (W) : 2.5
ISO 5211 Direct Mount top flange : No
Voltage : 24 V AC/DC
