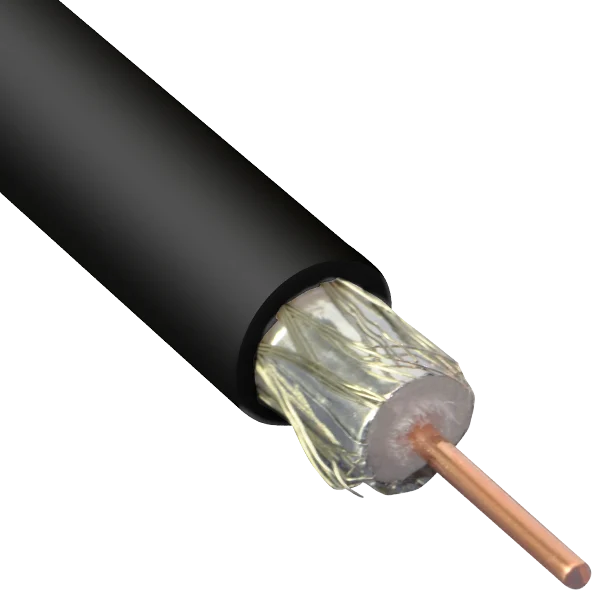

Bedea TELASS Coaxial Cable – 801085 [500 Meters]

Bedea TELASS 100 coaxial cable, sheath black, inner conductor class 1 = solid, halogen-free according to EN 60754-1/2, sheath material polyethylene (PE), outer diameter 6.8mm, inner conductor diameter 1.13mm, outer conductor diameter 4.9mm, characteristic impedance 75Ohm.

Specifications

Diameter inner conductor (mm) : 1.13
Inner conductor material : Copper
Inner conductor category : Class 1 = solid
Diameter outer conductor (mm) : 4.9
Outer conductor material : Copper
Type of outer conductor : Foil + braiding
Dielectric : Polyethylene, foamed (foam PE)
Color outer sheath : Black
Characteristic impedance (Ohm) : 75
Outer diameter approx. (mm) : 6.8
Permitted cable outer temperature during assembling/handling (°C) : -5 °C to 50 °C
Permitted cable outer temperature after assembling without vibration (°C) : -25 °C to 70 °C
