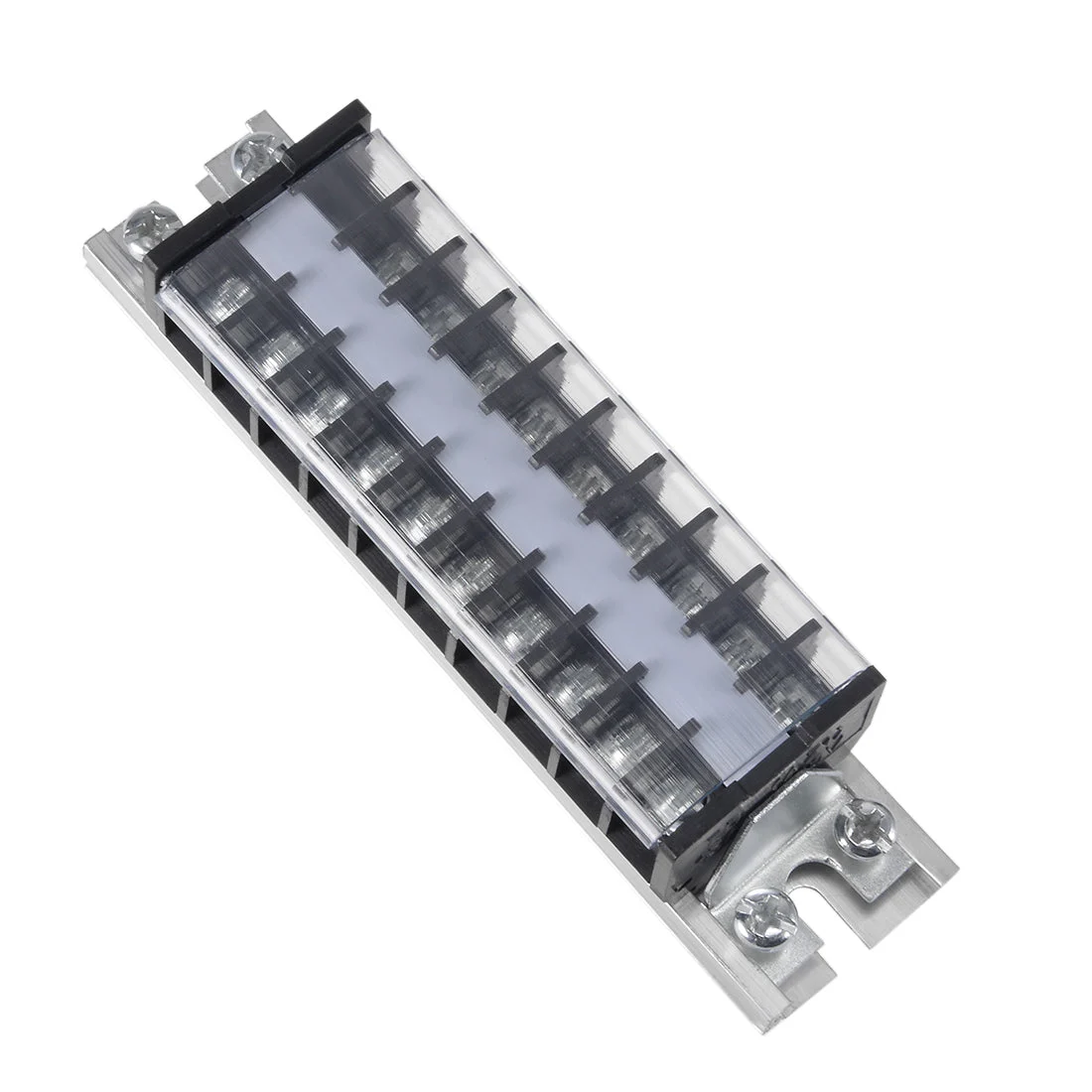

Barrier Terminal Strip Block 660V 15A Dual Rows 10 Position DIN Rail Base Covered Screw

About this item

• Rated Value: 660V 15A; Poles: 10 Position, Dual Row; Terminal Quantity: 20; Rail Width: 25mm.
• Removable clear plastic insulating cover prevents accidental contact the terminals.
• Each pair of terminals is insulated from the next, prevent circuit in trouble.
• Used for wires connecting of home appliances, electronic circuits, machines, etc.
• Package Content: 1 x 660V 15A 10 Position Double Row Barrier Block Terminal.

Description:
1. Double rows and with removable clear plastic insulating cover.
2. Each pair of terminals is insulated from the next, prevent circuit in trouble.
3. The set screws secure wires reliable contact and help prevent accidental contact with the terminals.
4. Used for wires connecting of home appliances, electronic circuits, machines, etc.
5. One mounting hole each end for fixed mounting, easy to install.
Specifications:
Product Name: 10 Positions Barrier Terminal Block
Maximum Rated Voltage: 660V
Maximum Rated Current: 15A
Poles: 10 Positions (Dual Row)
Size: 4.53 inch(L) x 1.18 inch(W) x 1.14 inch(H)
Each Screw Terminal Width: 7mm / 0.28 inch
Rail Width: 25mm / 0.98 inch
Colour: Black
Weight: 67g
Package Inculde:
1 x Barrier Terminal Block
