About this item
- [Size] – 5/8″ diameter ball bearing roller, 360 degree rotation
- [Capacity] – The ball is made of bearing steel.Support up to 22Lbs/10kg each
- [Mounting Size] – Mounting Hole Diameter: 4mm/0.16″; Mounting Hole Distance: 39/1.5″
- [Function] – According to different bearing requirements, the distribution density of the ball transfer units can be set arbitrarily
- [Application] – It is widely used in various transportation,transmission systems, feed systems, processing systems,packaging machinery auxiliary equipment, as well as object turning and confluence. Moreover, it works perfectly for drawer, so that you can roll it out with minimal pull.
Description:

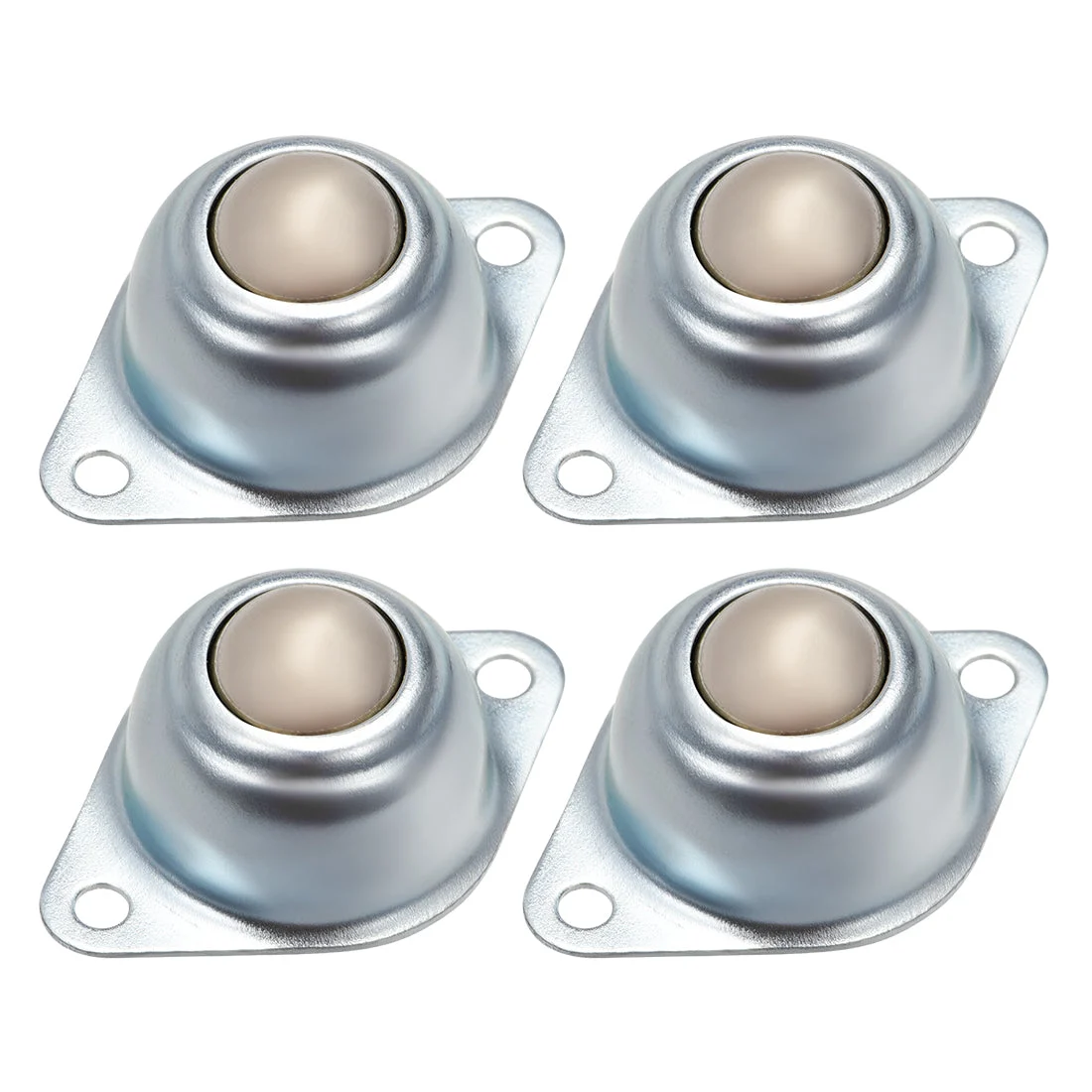

1.Ball Transfer Unit are omni-directional load-bearing spherical balls mounted inside a restraining fixture.
2.360 universal transfer bearings is suitable for curved work created on band saws and router tables.
3.5/8 inch diameter ball bearing roller is perfect. With a load bearing capacity of 22 lbs. each.
4.Housing be made of carbon steel material, Roller Ball made from bearing steel.
5.Features: Two screw holes in each bearing surround for solid attachment to the worktable or workbench.
6.Widely used in transmission system, feeding system, processing system, processing machinery and packaging machinery auxiliary equipment.
Specifications:
*Model: CY-15A
*Capacity(Max.): 10kg/22lb
*Ball Diameter: 15.8mm / 0.62-inch
*Mount Hole Dia.: 4mm/0.16-inch
*Mount Hole Distance: 39mm/1.5-inch
*Material: Carbon Steel, Bearing Steel
*Dimension: 48 x 32 x 20mm/1.9-inch x 1.26-inch x 0.8-inch(L*W*H)
Note: These Ball Transfer Units are used for transporting flat, smooth objects such as trays. It is not suitable for transporting stuff which has uneven or soft bottom surface such as cloth wrapping. It can not be used as swivel caster to move on the floor.
Package Content:
*4pcs x Ball Transfer Unit
