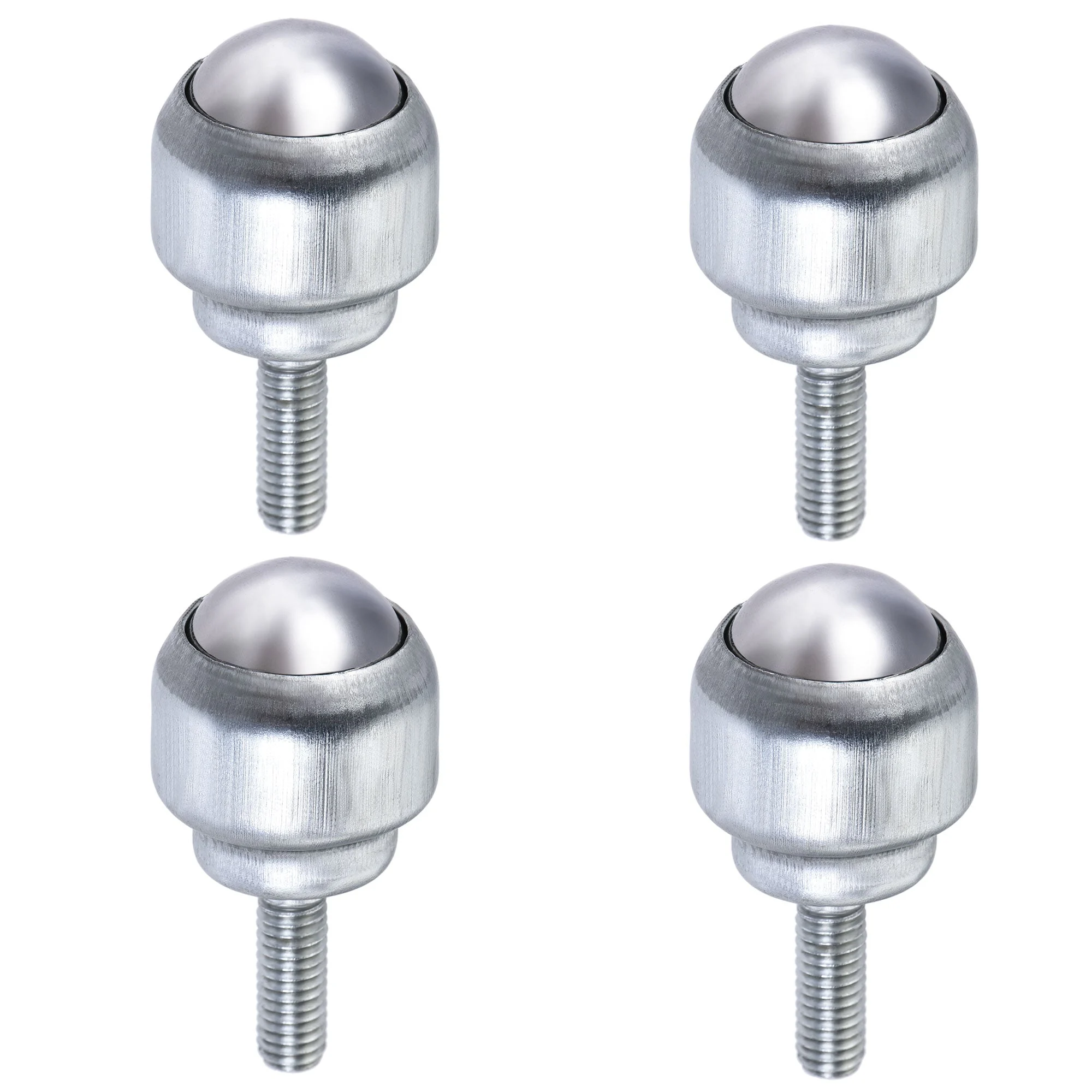

Ball Transfer Bearing Unit 17mm 44Lbs Carbon Steel Bolt-fixing Type 4pcs

About this item

• [Size] – 17mm / 0.67″ diameter ball bearing roller, 360 degree rotation
• [Load Capacity] – The bearing ball is made of carbon steel.Support up to 44Lbs/20kg each
• [Mounting Size] – Type: Bolt-fixing; Body Size: 23x23mm / 0.91×0.91 Inch(DxH); Thread Size: M6x1.0; Thread Length: 16mm / 0.63 Inch; When installing the ball transfer unit, the ball should be installed upward
• [Function] – According to different bearing requirements, the distribution density of the ball transfer units can be set arbitrarily, and its working orientation could be ball up / angle
• [Application] – It is widely used in transportation, transmission systems, feed systems, processing systems,packaging machinery auxiliary equipment, as well as object turning and confluence. Moreover, it works perfectly for drawer, so that you can roll it out with minimal pull.

Specifications:
Type: Bolt-fixing
Material(Bearing Ball): Carbon Steel
Load Capacity(Max.): 20kg / 44lb
Ball Diameter: 17mm / 0.67 Inch
Thread Size: M6x1.0
Thread Length: 16mm / 0.63 Inch
Body Size: 23x23mm / 0.91×0.91 Inch(DxH)
Features:
1. Ball Transfer Unit is omni-directional load-bearing spherical balls mounted inside a restraining fixture
2. 360 degree universal transfer bearing ball is good for facilitating smooth, multi-directional motion
3. Widely used in various transmission systems, feed systems, processing systems, packaging machinery auxiliary equipment, as well as object turning and confluence.

Note:
1. Use for transporting stuff has a smooth or flat bottom
2. If to transport something that has an uneven or soft bottom surface, the tray could help you
3. This ball transfer unit is not used as a swivel caster to move on the floor
Package Content:
4 x Ball Transfer Unit
