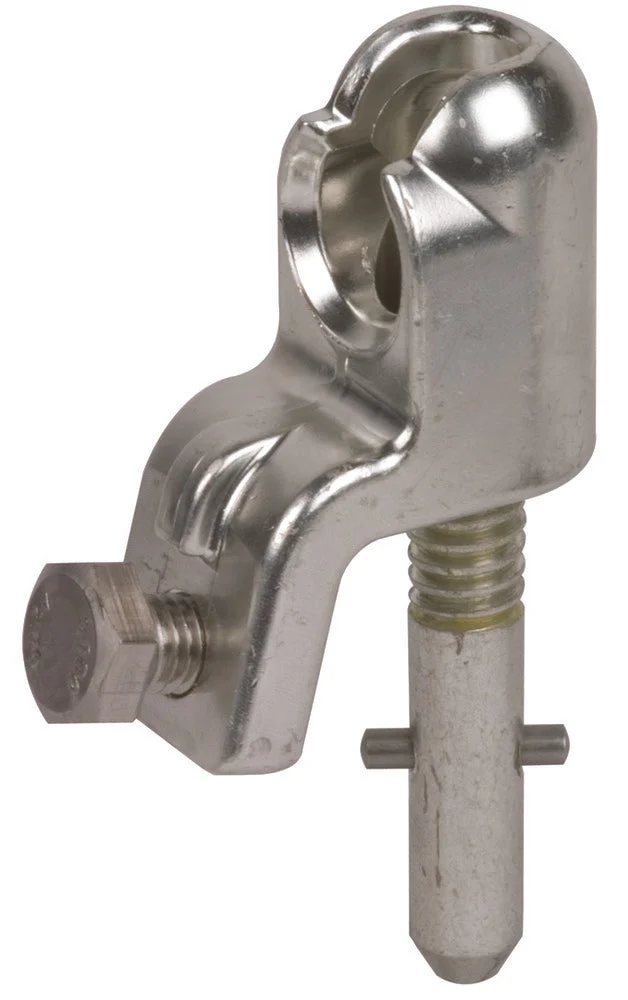

The item is a rigid ball head cap with a T pin shaft, designed for use as a phase or earth connecting element in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is suitable for fixed ball points attachments to earthing and short-circuiting devices. It features maximum short-circuit current of 42kA, with designed wiring section ranging from 16 to 150mm². The connection technique includes the intensely secure ball point with 25mm diameter. PK1 anti-rotation element ensures the stability of the object while the operating rod spindle is attached using a cross pin.
Specifications
Max. short circuit current (kA) : 42
For wire cross section (mm²) : 16 mm² to 150 mm²
Connection type : Fixed ball point 25 mm
Anti-rotation protection : Yes
Admission of the activation rod : Spindle with cross pin
Application : Phase-side
