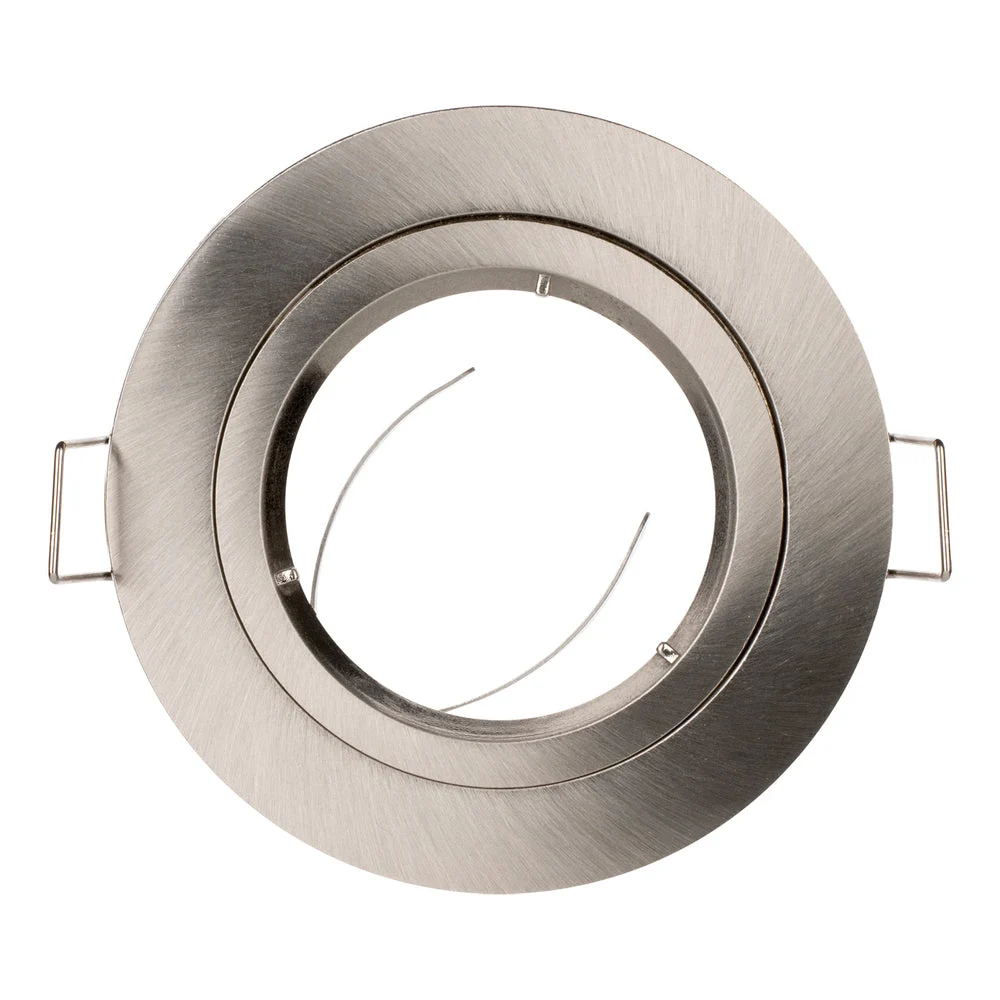

Bailey Downlight/Spotlight/Floodlight – 141967

Recessed spot with an aluminum frame. Suitable for mains voltage GU10 or GZ10 halogen and LED lamps. Maximum capacity is 50W.

Includes a GU10 mounting kit, which includes:

• a lamp holder,
• bracket,
• and junction box.

Specifications

Suitable for surface mounting : No
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : HV halogen lamp
With light source : No
Suitable for number of lamps : 1
Lamp holder : GU10
Material : Aluminum
Surface protection : Other
Color housing : Aluminum
Material cover : None
Surface brushed : Yes
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
Type of control gear : Not required
With control gear : No
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : None
Light distributor : None
Light sharing : Symmetric
Beam angle : Extreme wide beam>80°
Light outlet : Direct
Energy efficiency class : A++
Degree of protection (IP) : IP20
Degree of protection (NEMA) : Other
Impact strength : IK00
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : -45 °C to 50 °C
Suitable for lamp power (W) : 3 W to 50 W
Max. system power (W) : 60
Colour of light : Other
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Height/depth (mm) : 90
Outer-diameter (mm) : 78
Built-in height/depth (mm) : 90
Built-in diameter (mm) : 70 mm to 70 mm
Type of wiring : Suitable for through wiring
Number of poles : 2
Conductor cross section (mm²) : 0.75
Connection type : Screwed terminal
Luminaire with limited surface temperature, sign “D“ : No
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : None
Photobiological safety according to EN 62471 : Other
IFTTT support available : No
Color consistency (McAdam ellipse) : Other
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
