About this item

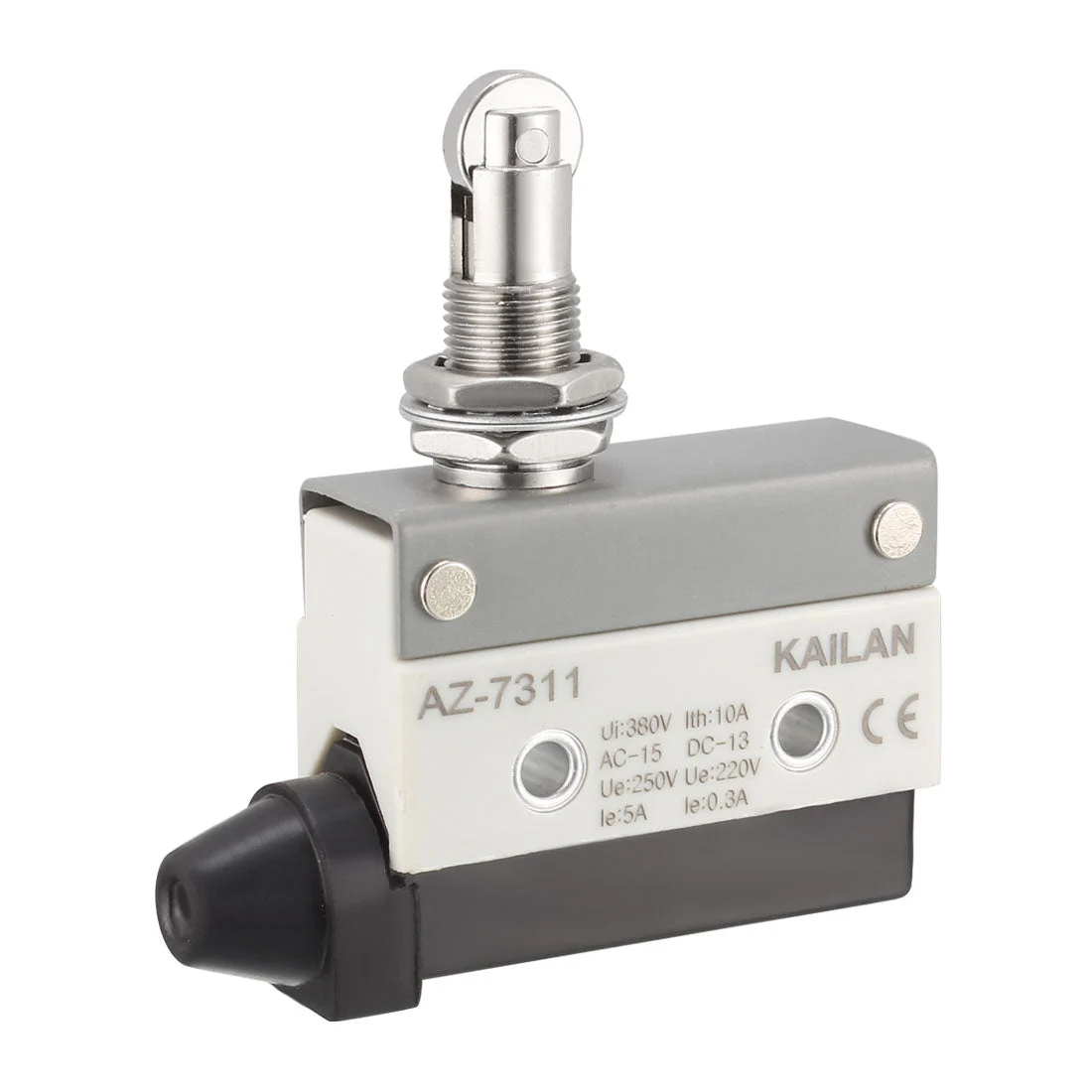

- Model: AZ-7311; Roller Plunger Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification:
Product Name: Limit Switch
Model: AZ-7311
Actuator Type: Roller Plunger Type
Rated Voltage:
AC-15: 250V 5A
DC-13: 220V 0.3A
Contact Configuration: 1NC+1NO
Body Size: 54 x 42 x 21mm (L*W*T)
Mounting Hole Size: 4.2mm (D)
Mounting Hole Distance: 25.4mm
The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.
Position detection accuracy is high.
Operating Characteristics:
OF max.: 600g
RF min.: 100g
PT max.: 1.0mm
OT min.: 6.0mm
MD max.: 0.8mm
OP: 33.3+/-1.2mm
Description:
- Insentive ABS plastic shell, sealed construction.
- Panel mount, side fixed with better water-proof and oil-proof performance.
- Smooth operation with highter OT.
- Silver contacts. Easy-to-wire design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
