About this item
- Model: AZ-7100; Plunger Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification:

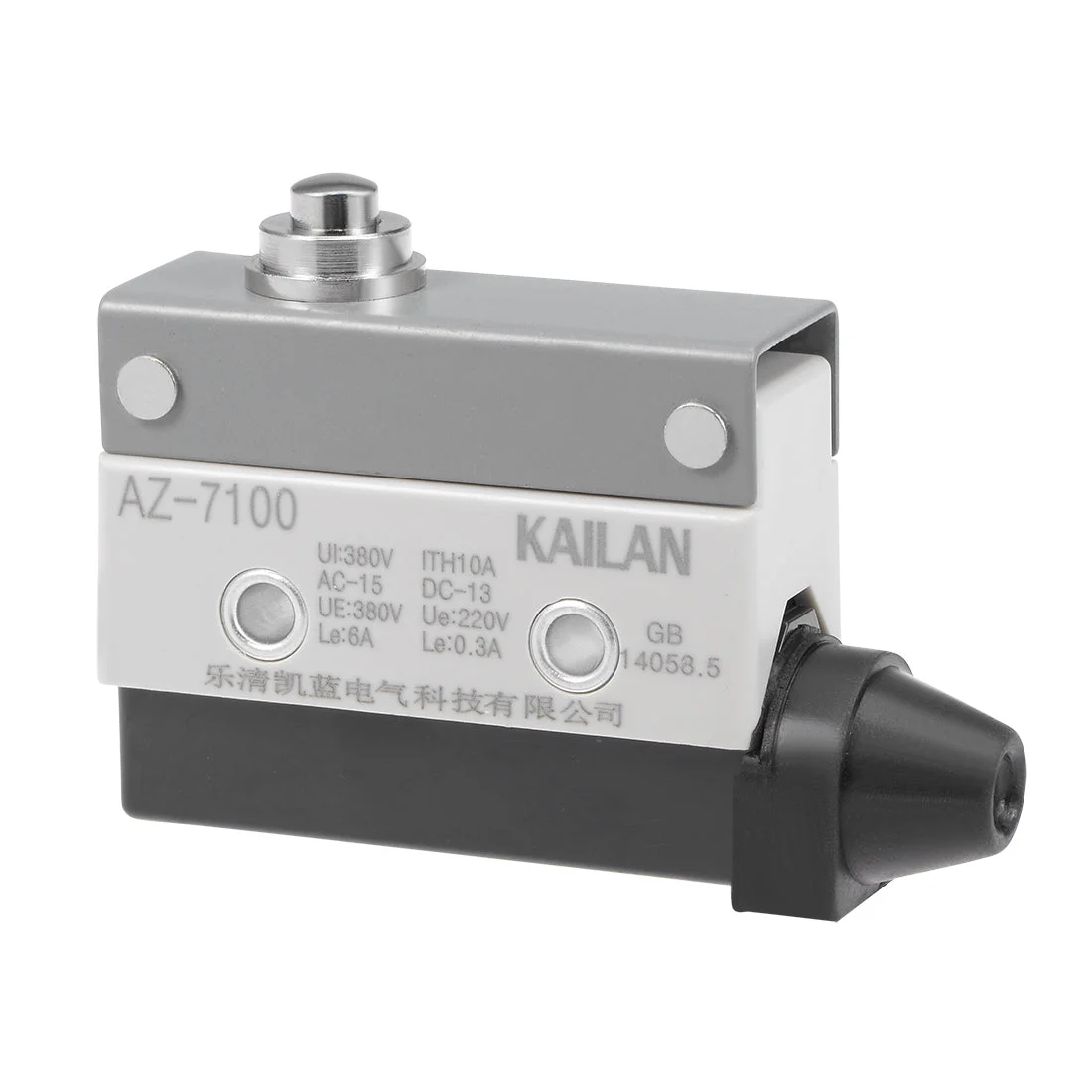

Product Name: Limit Switch
Model: AZ-7100
Actuator Type: Plunger Type
Rated Voltage:
AC-15: 250V 5A
DC-13: 220V 0.3A
Contact Configuration: 1NC+1NO
Body Size: 54 x 42 x 21mm (L*W*T)
Mounting Hole Size: 4.2mm (D)
Mounting Hole Distance: 25.4mm
The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.
The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger.
Operating Characteristics:
OF max.: 600g
RF min.: 100g
PT max.: 2.0mm
OT min.: 0.8mm
MD max.: 0.8mm
OP: 30.5+/-0.8mm
Description:
- Insentive ABS plastic shell, sealed construction.
- Panel mount, side fixed with better water-proof and oil-proof performance.
- Smooth operation with highter OT.
- Silver contacts. Easy-to-wire design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
