About this item
- Terminal Number: 2 Terminals; Rated Voltage: 250V; Rated Current: 25A
- Net Weight: 95g; Opening size: 25mm/0.98″; Color: Silver Tone, Black; Qualification: CE
- Model: DF25-2; Contact Resistance: <0.01ohm; Insulation Resistance:>2000Mohm
- Temperature Range: -25~80C; Total Size: 2.53″ x 1.65″; Contact Material: Brass with silver plating
- The Wire Hole Diameter: 13mm/0.51″; Terminal Diameter: 3.45mm/0.135″; Mounting Hole Distance: 26.8mm/1.06″
Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic Connector.

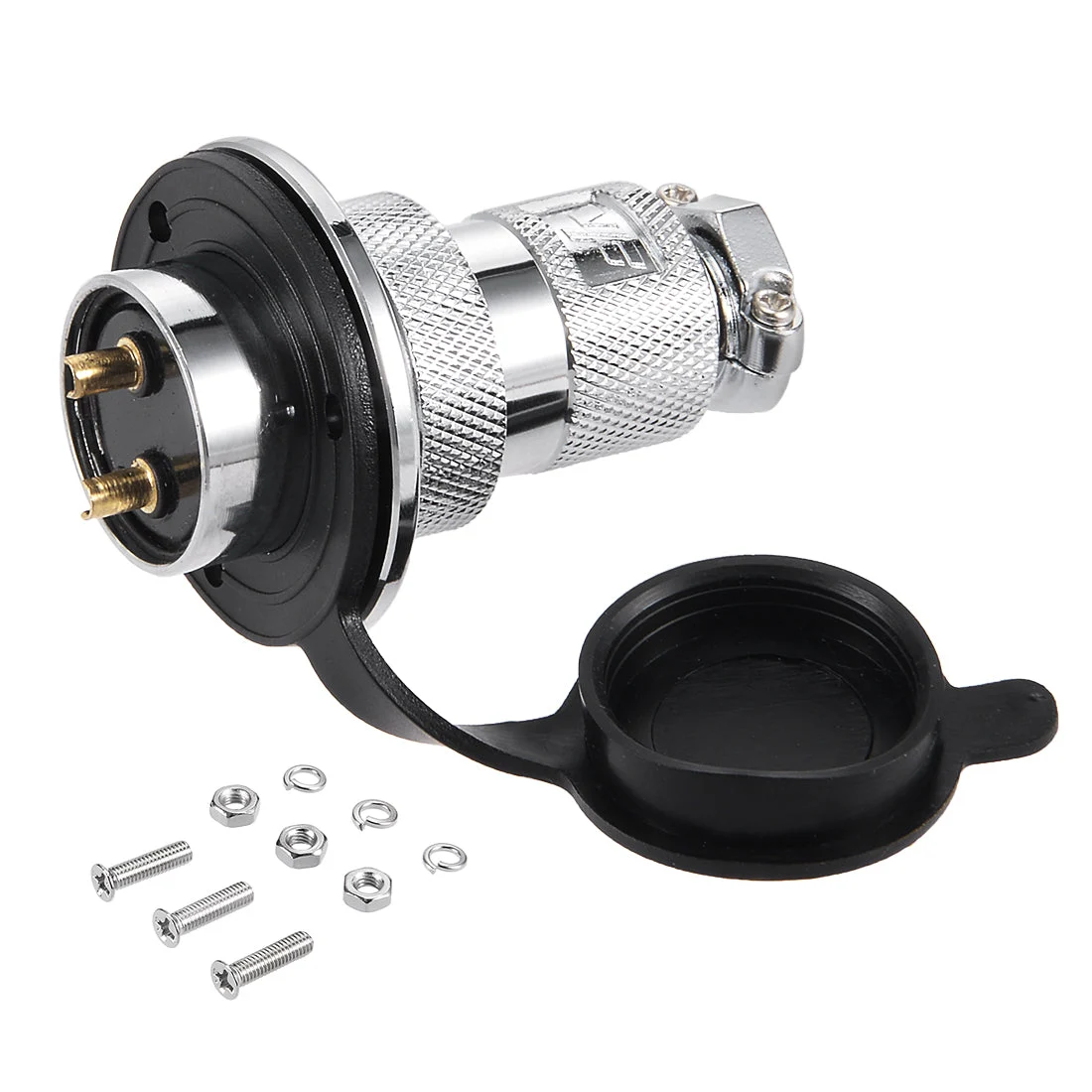

Product Name:Aviation Connector
Model:DF25-2
Terminal Number: 2 Terminals
Thread Dia: 25mm/0.98inch
Rated Voltage: 250V
Rated Current: 25A
Net Weight:90g
Coupling: Thread Coupling
Shell Material: Zinc alloy with chrome plating
Contact Material: Brass with gold plating
Color: Silver Tone, Black
Contact Resistance: 2000Mohm
Temperature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 1 x Aviation Connector
