About this item
- Product Name : Aviation Connector Plug;Model : P20-3;Type : Male Female Plug;Contacts Pin Number : 3;Qualification: CE
- Rated voltage: 250V ;Rated Current: 25A; ;Withstand Voltage : AC 1500V; Contact Material: Brass with silver plating
- Terminal Diameter: 3.15mm / 0.125″; Total Size: 87.63 x 30mm/3.45 x 1.18″ (Lx Max.W); The Wire Hole Diameter: 12mm/0.5″;Mounting Hole Distance: 22mm/0.86″
- Contact Resistance: <0.001ohm; Insulation Resistance:>500Mohm; Temperature Range: -25~80C
- The Aviation connector is widely used in signal and electronic connector of aviation, space light, post and telecommunications, computer, navigation and various kinds of instruments, CNC machine etc. It plays the role of connecting or disconnecting circuits. It connects and disconnects quickly and easily, and requires no tools for installation and removal. It is waterproof and has a good service life.
Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipment.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great electronic connector.
Specification:

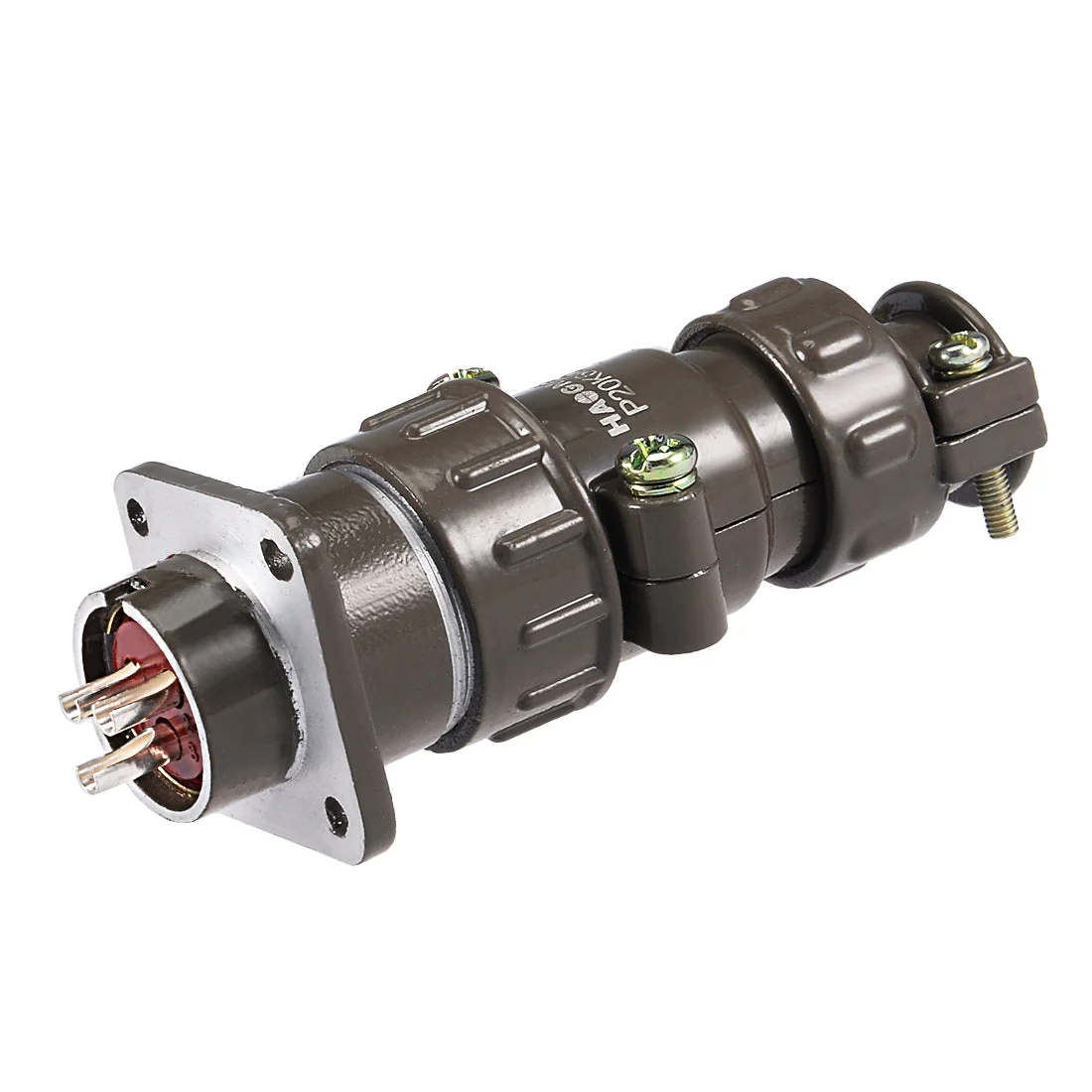

Product Name:Aviation Connector
Model:P20-3
Terminal Number: 3 Terminals
Thread Dia: 20mm/0.8inch
Rated Voltage: 250V
Rated Current: 25A
Net Weight:75g
Coupling: Thread coupling
Shell Material: Zinc alloy with chrome plating
Contact Material: Brass with gold plating
Color: Silver Tone, Black
Contact Resistance: 500Mohm
Temperature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 1 x Aviation Connector
