About this item
- Total Size: 2.25″ x 1.28″; The Wire Hole Diameter: 8.15mm/0.32″; Terminal Diameter: 3mm/0.12″
- Mounting Hole Distance: 21.3mm/0.84″; Terminal Number: 3 Terminals; Rated Voltage: 250V; Rated Current: 20A
- Contact Material: Brass with silver plating; Net Weight: 56g; Opening size: 20mm/0.8″
- Color: Silver Tone, Black; Qualification: CE; Model: M20-3
- Contact Resistance: <0.01ohm; Insulation Resistance:>500Mohm; Temperature Range: -25~80C
Description:
Widely used in aviation, navigation, construction site, port, dock, and some other sealing electronic equipments.
Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.
Waterproof and really a great apparatus electronic connector.
Specificatios:

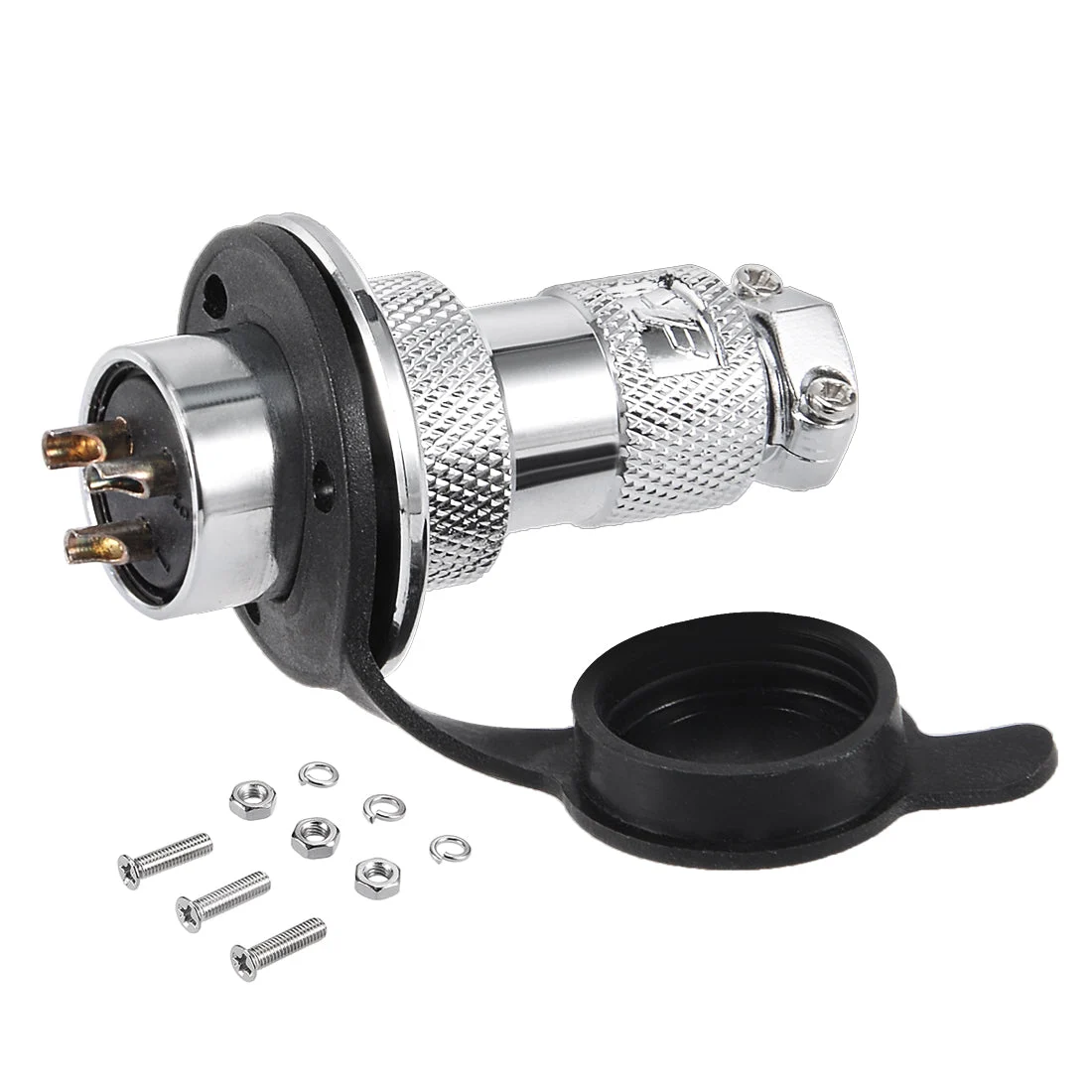

Product Name: Aviation Connector
Model: M20-3
Terminal Number: 3 Terminals
Thread Dia: 20mm/0.8inch
Rated Voltage: 250V
Rated Current: 20A
Net Weight: 50g
Coupling: Thread couping
Insert Material: PPS
Shell Material: Zinc alloy with chrome plating
Contact Material: Barss with gold plating
Color: Silver Tone, Black
Contact Resistance: 500Mohm
Temprtature Range: -25~80C
Qualification: CE
Package Include:
Package Content: 1 x Aviation Connecto
