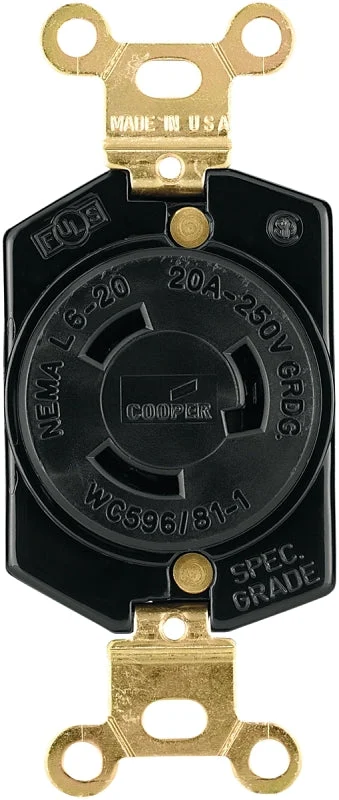

Arrow Hart L620R Single Receptacle, 2-Pole, 250 V, 20 A, Back Wiring, NEMA: NEMA L6-20, Black

High impact-resistant nylon face and body. Combination head terminal and mounting screws. One-piece, wraparound mounting strap. Back wire terminal clamps for easy, secure wiring. One-piece brass contacts offer excellent design and minimum heat rise. UL Listed.
Unit: EA
UPC: 032664417801
Model Number: L620R

Features

• Rugged glass filled nylon body
• Clearly marked rating, NEMA configuration and approval listings on receptacle face
• One-piece brass contacts offer excellent performance and minimal heat rise
• Back and side wire terminal clamps for easy secure wiring

Additional Information

• Color: Black
• Current Rating: 20 A
• Dimensions: 3.64 in L x 1.63 in W x 1.06 in D
• Material: Nylon
• NEMA Configuration: NEMA L6-20
• Number of Poles: 2
• Number Of Wires: 3
• Operating Temperature: -40 to 60 deg C
• Voltage Rating: 250 V
• Wire Size: 14 to 8 AWG
• Wiring Type: Back and Side
